iTel IPW-51100 5.12kWh Lithium Battery – Technical Specifications
| Specification | Details |
|---|---|
| Brand | iTel |
| Model | IPW-51100 |
| Installation Type | Wall Mounted |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Energy | 5.12kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 40–57.6V |
| Standard Charging Current | 50A |
| Maximum Continuous Charge Current | 100A |
| Cut-Off Charging Voltage | 57.6V |
| Cut-Off Charging Current | 2A |
| Standard Discharge Current | 50A |
| Maximum Continuous Discharge Current | 100A |
| Maximum Pulse Discharge Current | 150A |
| Cut-Off Discharge Voltage | 40V |
| Cut-Off Discharge Current | 2A |
| Cycle Life | ≥6000 Cycles |
| Design Life | 10+ Years |
| Communication | RS485 / RS232 / CAN |
| Display | 4 Green LEDs |
| Ingress Protection | IP21 |
| Cooling Type | Natural Cooling |
| Shell Material | Metal |
| Current Limiting Function | Limited to 10A |
| Precharge Function | Enabled |
| Charging Temperature | 0°C to +55°C |
| Discharging Temperature | -20°C to +60°C |
| Humidity | 0%–95% |
| Maximum Altitude | 4000m |

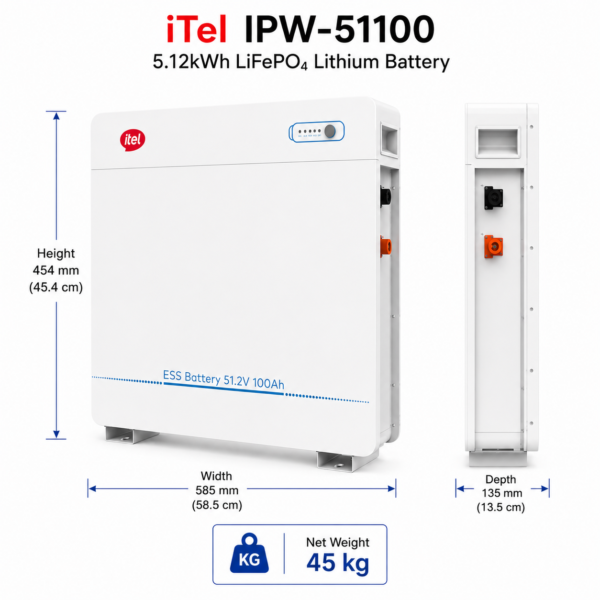

| Dimensions | 454 × 585 × 135 mm |
| Dimensions in cm | 45.4 × 58.5 × 13.5 cm |
| Net Weight | 45 kg |
| Authentication / Certification | IEC / UN38.3 / MSDS / DGM |

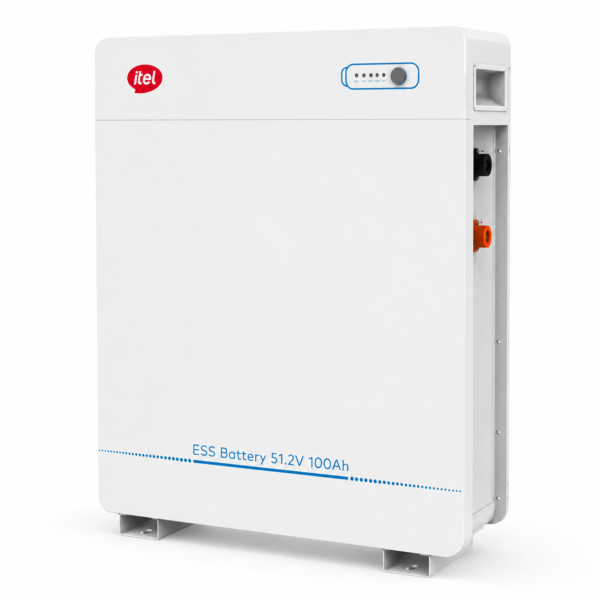

iTel IPW-51100 5.12kWh LiFePO₄ Lithium Battery
The iTel IPW-51100 5.12kWh Lithium Battery is a wall-mounted LiFePO₄ energy storage solution designed for compatible 48V-class hybrid solar and backup power systems.
Featuring 51.2V nominal voltage, 100Ah capacity and 5.12kWh nominal energy, the IPW-51100 provides dependable battery storage for homes, offices, shops and other solar applications.
5.12kWh LiFePO₄ Energy Storage
The IPW-51100 uses Lithium Iron Phosphate (LiFePO₄) battery chemistry and provides 5.12kWh nominal energy from its 51.2V 100Ah battery system.
100A Charge & Discharge Capability
The battery supports a standard charging current of 50A and up to 100A maximum continuous charging current. Maximum continuous discharge current is also 100A, with up to 150A pulse discharge capability.
Long Cycle & Design Life
iTel specifies a battery cycle life of 6,000 cycles or more together with a 10+ year design life, making the IPW-51100 suitable for long-term solar energy-storage applications.
Smart Communication
The battery provides RS485, RS232 and CAN communication interfaces for integration and communication with compatible solar inverter and battery-management systems.
Wide Operating Voltage Range
The IPW-51100 operates across a 40V to 57.6V voltage range, with a nominal battery voltage of 51.2V.
Built for Solar Backup

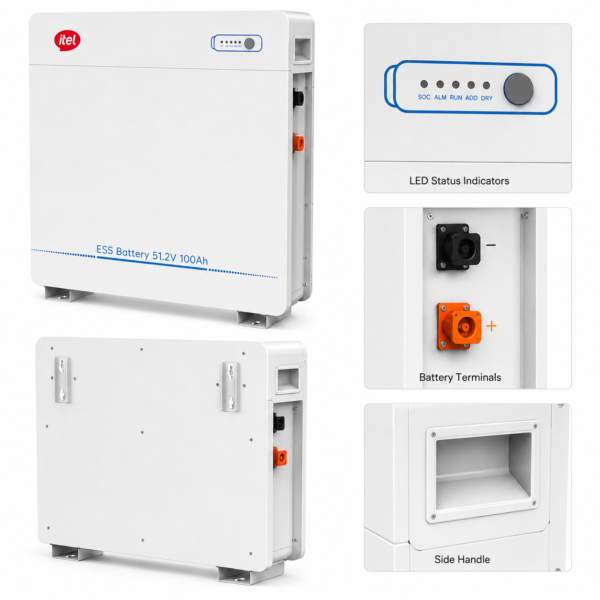

A metal enclosure, natural cooling system, LED status display and IP21 ingress protection make the battery suitable for protected indoor solar energy-storage installations.

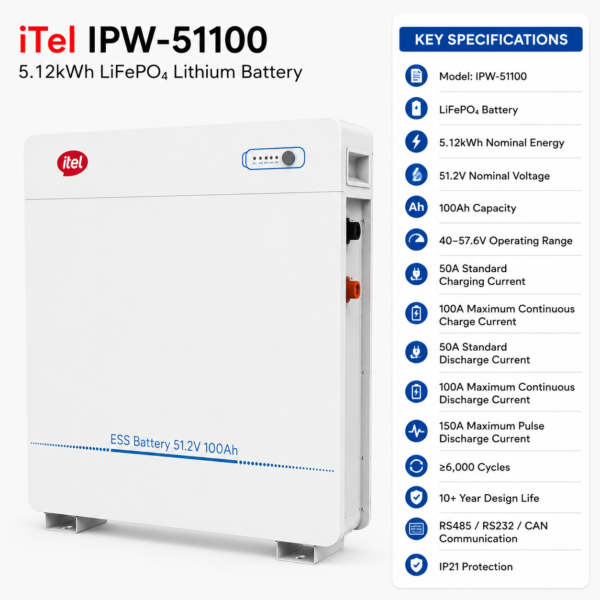

Key Features
- 5.12kWh nominal energy
- 51.2V nominal voltage
- 100Ah nominal capacity
- LiFePO₄ battery chemistry
- 40–57.6V operating voltage range
- 50A standard charging current
- 100A maximum continuous charging current
- 50A standard discharge current
- 100A maximum continuous discharge current
- 150A maximum pulse discharge current
- ≥6,000 cycle life
- 10+ year design life
- RS485 / RS232 / CAN communication
- LED status indication
- Natural cooling
- Metal enclosure
- IP21 protection
Ideal Applications
- Residential hybrid solar systems
- 48V-class hybrid inverter systems
- Home battery backup
- Shops and offices
- Off-grid solar systems
- Solar energy storage systems
Buy the iTel IPW-51100 5.12kWh Lithium Battery from Satluj Solar for genuine solar energy-storage equipment and professional system guidance.
