Description

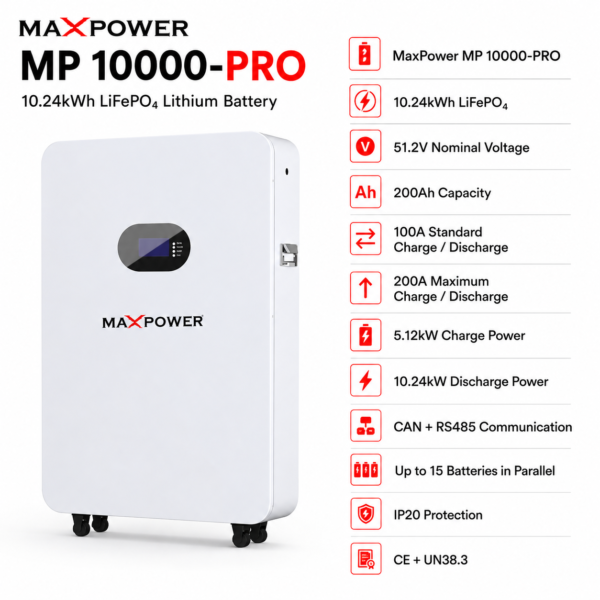

MaxPower MP 10000-PRO – Technical Specifications
| Specification | Details |
|---|---|
| Brand | MaxPower |
| Series | PRO Series |
| Model | MP 10000-PRO |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Energy | 10.24kWh |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| System Class | 48V |
| Standard Charge / Discharge Current | 100A |
| Maximum Charge / Discharge Current | 200A |
| Charge Power | 5.12kW |
| Discharge Power | 10.24kW |
| Communication | CAN / RS485 |
| Maximum Parallel Expansion | Up to 15 Batteries |
| Installation | Floor Stand |
| Protection Rating | IP20 |
| Charging Temperature | 0°C to +55°C |
| Discharging Temperature | -30°C to +60°C |
| Operating / Storage Humidity | ≤95% RH |
| Certifications | CE / UN38.3 |

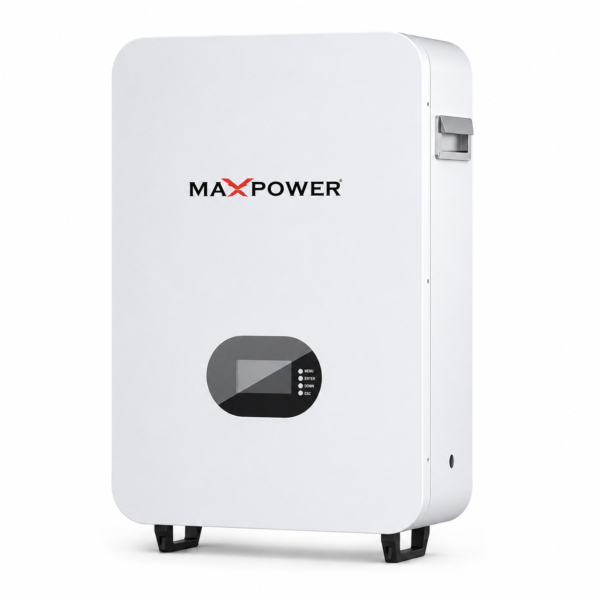

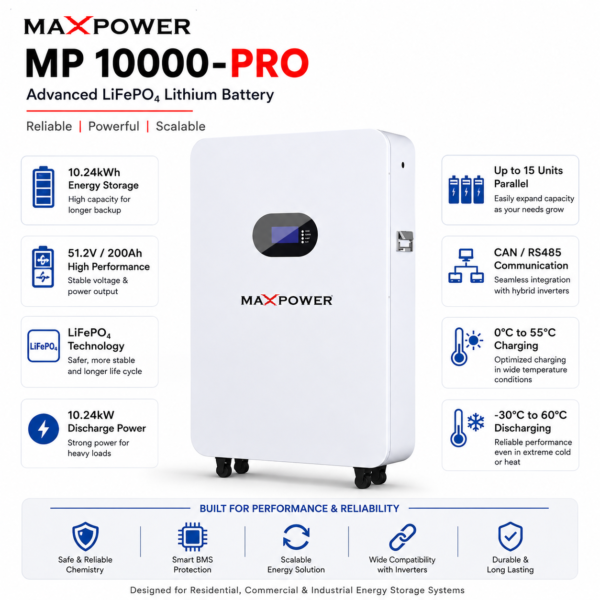

MaxPower MP 10000-PRO 10.24kWh Lithium Battery
The MaxPower MP 10000-PRO is a high-capacity LiFePO₄ lithium battery designed for residential, commercial and solar energy-storage applications requiring substantial backup capacity.
With a 51.2V nominal voltage, 200Ah capacity and 10.24kWh battery energy, the MP 10000-PRO provides a powerful energy-storage solution for compatible 48V-class hybrid solar systems.
10.24kWh High-Capacity Energy Storage
The MP 10000-PRO provides 10.24kWh of nominal battery energy, making it suitable for larger homes, offices, shops and commercial solar installations with higher backup requirements.
LiFePO₄ Battery Technology
The battery uses Lithium Iron Phosphate (LiFePO₄) technology, selected for its thermal stability, safety and suitability for solar energy-storage applications.
Powerful Charge & Discharge Performance
MaxPower specifies a 100A standard charge/discharge current with up to 200A maximum charge/discharge capability.
The battery provides up to 5.12kW charge power and 10.24kW discharge power for demanding compatible solar and backup systems.
Smart Inverter Communication
CAN and RS485 communication enable integration with compatible hybrid solar inverters and energy-management systems.
Expandable Up to 15 Batteries
The MP 10000-PRO supports up to 15 batteries in parallel, allowing storage capacity to be expanded for larger residential and commercial applications.
Wide Operating Temperature Range
The battery is specified for charging between 0°C and 55°C and discharging between -30°C and 60°C, with operating/storage humidity up to 95% RH.
Key Features
- 10.24kWh nominal battery energy
- 51.2V nominal voltage
- 200Ah nominal capacity
- LiFePO₄ battery technology
- 100A standard charge/discharge current
- 200A maximum charge/discharge current
- 5.12kW charge power
- 10.24kW discharge power
- CAN communication
- RS485 communication
- Up to 15 batteries in parallel
- IP20 protection
- Floor-standing installation
- CE and UN38.3 certified battery range
Ideal Applications
- Large residential solar systems
- Commercial solar installations
- Hybrid solar inverter systems
- Home and business backup
- Off-grid solar systems
- Expandable energy-storage systems
Buy the MaxPower MP 10000-PRO 10.24kWh Lithium Battery from Satluj Solar for genuine solar energy-storage equipment and professional system guidance.
