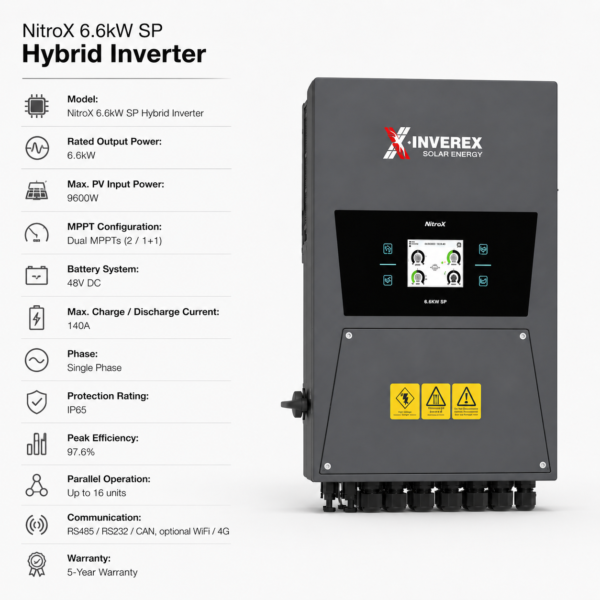

Inverex NitroX 6.6kW SP Hybrid Solar Inverter – Technical Specifications
| Specification | Details |
|---|---|
| Brand | Inverex |
| Model | NitroX 6.6kW SP Hybrid |
| Inverter Type | Hybrid Solar Inverter |
| Phase | Single Phase |
| Rated Output Power | 6.6kW |
| Maximum PV Input Power | 10.5kW / 10,560W |
| Maximum PV Input Voltage | 500V DC |
| MPPT Voltage Range | 150V – 425V DC |
| Number of MPPT Trackers | 2 (Dual MPPT) |
| Battery Voltage Range | 40V – 60V DC |
| Battery Compatibility | Lead-acid / Lithium-ion |
| Maximum Charging Current | 140A |
| Maximum Discharging Current | 140A |
| Peak Efficiency | 97.6% |
| DC Ripple | <0.5% |
| Protection Rating | IP65 |
| Surge Protection | Type II DC / Type II AC |
| Generator Support | Yes |
| AC Coupling | Supported |
| Battery Scheduling | 6 Programmable Charge / Discharge Time Slots |
| Parallel Operation | Up to 16 Units (On-grid / Off-grid) |
| Communication | RS485 / RS232 / CAN |
| Optional Monitoring | Wi-Fi / 4G |
| Display | Touch LCD |
| Noise Level | <30dB |
| Cooling | Air Cooling |
| Operating Temperature | -40°C to +60°C (Derating Above 45°C) |
| Dimensions | 34 × 47 × 25.8 cm |
| Net Weight | 17.35 kg |
| Warranty | 5 Years |

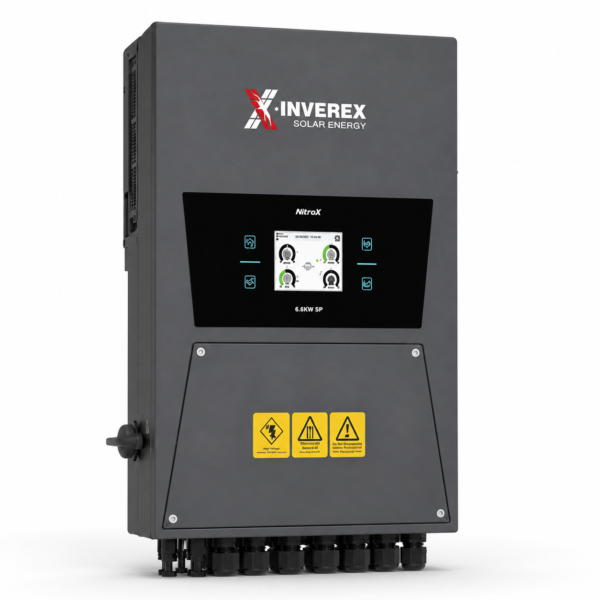

Inverex NitroX 6.6kW SP Hybrid Solar Inverter
The Inverex NitroX 6.6kW SP Hybrid Solar Inverter is a powerful single-phase hybrid inverter designed for residential and small commercial solar systems that require efficient solar generation, battery backup and intelligent energy management.
With a 6.6kW rated output and up to 10.5kW PV input, the NitroX 6.6kW gives installers flexibility to connect a larger solar array while maintaining reliable hybrid operation. Its dual MPPT design helps maximize solar generation from different panel strings and orientations.
Powerful 48V Battery Support
The inverter operates with a 40–60V battery range and supports both lithium-ion and lead-acid batteries. With up to 140A charging and discharging current, it is well suited to modern lithium battery systems requiring fast energy transfer.
High Solar Efficiency
The NitroX 6.6kW delivers up to 97.6% peak efficiency and features a wide 150–425V DC MPPT operating range, helping the system harvest solar energy efficiently under varying sunlight conditions.
IP65 Protection
An IP65-rated enclosure provides protection against dust and water exposure, making the inverter suitable for demanding installation environments when installed according to manufacturer guidelines.
Generator & AC Coupling Support
The inverter supports diesel generator integration and AC coupling, making it suitable for new hybrid installations as well as upgrades to existing solar systems.
Smart Energy Management
Users can configure up to six programmable battery charging and discharging time periods, allowing solar, grid and battery usage to be optimized according to electricity tariffs and backup requirements.
Key Features
- 6.6kW single-phase hybrid inverter
- 10.5kW maximum PV input
- Dual MPPT solar tracking
- 150–425V DC MPPT operating range
- 48V low-voltage battery system
- 140A maximum charging current
- 140A maximum discharging current
- 97.6% peak efficiency
- IP65 protection rating
- Touch LCD display
- Generator support
- AC coupling support
- Six programmable battery time slots
- Parallel operation up to 16 units
- RS485 / RS232 / CAN communication
- Optional Wi-Fi / 4G monitoring
- Low noise operation under 30dB
- 5-year manufacturer warranty
Ideal Applications
- Residential solar systems
- Large homes with lithium battery backup
- Offices and shops
- Small commercial installations
- Grid + solar + battery systems
- Generator-assisted hybrid systems
Buy the Inverex NitroX 6.6kW Hybrid Solar Inverter from Satluj Solar Bahawalnagar for genuine solar equipment, professional guidance and system compatibility support.
