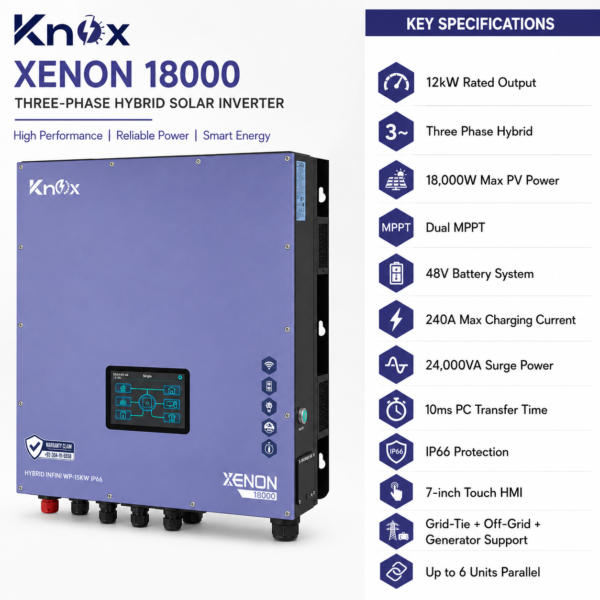

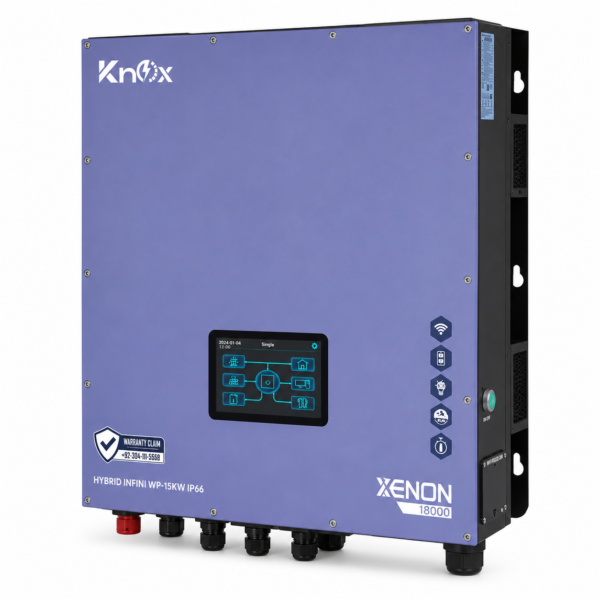

Knox Xenon 18000 12kW 3-Phase Hybrid Solar Inverter – 48V IP66

Description

Knox Xenon 18000 12kW Three-Phase Hybrid Solar Inverter

The Knox Xenon 18000 12kW Hybrid Solar Inverter is a high-capacity three-phase energy solution designed for large homes, commercial buildings, farmhouses and other high-load solar installations.

With 12,000W rated output, up to 18,000W maximum PV power, dual MPPT technology and a 48V battery architecture, the Xenon 18000 combines solar generation, battery backup, grid operation and generator integration in one powerful system.

12kW Three-Phase Output

The Xenon 18000 delivers 12kW rated three-phase output at 230/400VAC and provides up to 24,000VA surge power, making it suitable for demanding three-phase electrical loads.

18kW Solar PV Capacity & Dual MPPT

The inverter supports up to 18,000W maximum PV power and features two independent MPPT trackers. Each MPPT supports up to 27A input current with two strings per MPPT, providing flexibility for larger solar arrays.

48V Lithium & Lead-Acid Battery Support

The Xenon 18000 operates with a 48V nominal battery system across a 40–60V operating range. It supports both lithium and lead-acid batteries, with BMS communication available through RS485, CAN-Bus and RS232.

Maximum battery charging current reaches 240A, providing powerful charging capability for large energy-storage systems.

Fast Backup Switching

The inverter provides a transfer time of approximately 10ms for PCs and 20ms for appliances, allowing fast transition between available energy sources.

Grid-Tie, Off-Grid & Generator Support

The Xenon 18000 supports grid feeding, off-grid operation, generator input and battery backup. Its battery-independent design also provides greater flexibility when configuring different solar system architectures.

Scalable Parallel Operation

For larger installations, up to six compatible inverter units can be operated in parallel, providing a scalable platform for high-capacity energy systems.

IP66 Protection

The IP66-rated enclosure provides strong resistance against dust and water ingress, making the inverter suitable for demanding installation environments when installed according to manufacturer requirements.

7-Inch Touch HMI

A large 7-inch touchable HMI display provides convenient access to system information and inverter settings.

Key Features

• 12kW three-phase hybrid solar inverter
• 18,000W maximum PV power
• Dual MPPT solar tracking
• 27A maximum PV input current per MPPT
• 2 strings per MPPT
• 48V battery architecture
• 40–60V battery voltage range
• Lithium and lead-acid battery support
• 240A maximum charging current
• 24,000VA surge capacity
• Pure sine wave output
• IP66 protection
• 7-inch touch HMI display
• Grid-tie and off-grid operation
• Generator input support
• Battery-independent operation
• Dual AC outputs for smart load management
• Parallel operation up to 6 units
• Wi-Fi monitoring
• RS-232 / RS-485 / USB / CAN communication

Ideal Applications

• Large residential three-phase systems
• Commercial buildings
• Farmhouses
• High-load shops and offices
• Solar + lithium battery systems
• Generator-assisted solar systems
• Scalable commercial energy-storage installations

Buy the Knox Xenon 18000 12kW Three-Phase Hybrid Solar Inverter from Satluj Solar for genuine solar equipment and professional system guidance.
