iTel IPV-12K48U 12kW 48V Hybrid Solar Inverter – Technical Specifications
| Specification | Details |
|---|---|
| Brand | iTel |
| Model | IPV-12K48U |
| Inverter Type | Hybrid Solar Inverter |
| Phase | Single Phase |
| Rated AC Output Power | 12kW / 12,000W |
| Maximum Output Apparent Power | 12kVA |
| Surge Power | 24kW @ 5 Seconds |
| Battery Voltage | 48V DC |
| Battery Voltage Range | 40V – 60V DC |
| Battery Compatibility | Lead-Acid / Lithium-Ion / User Defined |
| Maximum Battery Discharge Current | 250A |
| Maximum PV Input Power | 16,000W |
| Maximum PV Input Voltage | 500V DC |
| PV Start-Up Voltage | 75V DC |
| MPPT Voltage Range | 85V – 450V DC |
| Number of MPPT Trackers | 2 |
| Maximum PV Input Current | 27A + 27A |
| MPPT Tracking Efficiency | ≥99.5% |
| Maximum Battery Mode Conversion Efficiency | 95% |
| Maximum MPPT Charging Current | 210A |
| Maximum Mains / Generator Charging Current | 210A |
| Maximum Grid Input Voltage | 380Vrms |
| Nominal AC Input Voltage | 220V / 230V / 240V AC |
| AC Input Voltage Range | 90V – 280V AC |
| Maximum AC Input Current | 90A (Bypass Mode) |
| Nominal Input Frequency | 50Hz / 60Hz |
| Input Current THD | <3% |
| Nominal AC Output Voltage | 220V / 230V / 240V AC |
| Nominal Output Frequency | 50Hz |
| Output Voltage THD | <3% |
| UPS Switching Time | 10ms |
| Appliance Switching Time | 20ms |
| Overload Capacity | 105%–150% @ 10 Seconds / 150%–200% @ 5 Seconds |
| Smart Load Support | Yes |
| Diesel Generator Support | Yes |
| Wi-Fi Monitoring | Yes |
| Communication | Wi-Fi / RS485 / CAN / RS232 / Dry Contact |
| Parallel Operation | Up to 6 Units (Single Phase) / Up to 12 Units (Three-Phase System) |
| Cooling Method | Intelligent Fan Cooling |
| Noise Level | <60dB |
| Operating Temperature | -10°C to +55°C |
| Maximum Operating Altitude | 4000m |
| Protection Rating | IP54 |
| Overvoltage Protection | Yes |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Surge Protection | DC Type III / AC Type III |
| Dimensions (D × W × H) | 12.5 × 52.5 × 63 cm |
| Net Weight | 28.5 kg |
| Certifications | IEC62109-1 / IEC62109-2 / IEC61683 |
| Manufacturer Replacement Warranty | 3 Years |

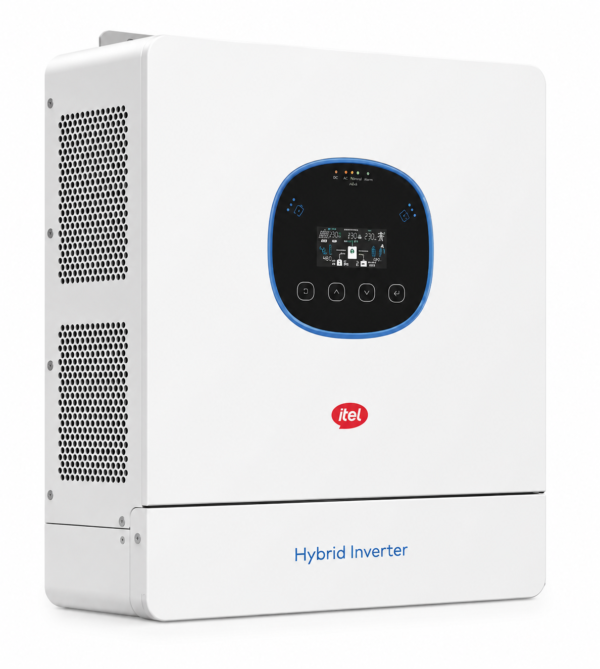

iTel IPV-12K48U 12kW 48V Single-Phase Hybrid Solar Inverter
The iTel IPV-12K48U is a high-capacity 12kW 48V single-phase hybrid solar inverter designed for customers who need powerful solar generation, battery backup and flexible energy management.
With a 12kW rated AC output and up to 24kW surge power, the IPV-12K48U is suitable for large residential systems, agricultural applications, offices, commercial buildings and other installations requiring high backup capacity.
Powerful Solar Input
The inverter supports up to 16,000W of PV input power and features dual MPPT trackers. Its maximum PV input voltage is 500V, with an MPPT operating range of 85–450V, allowing flexible solar panel configuration.
48V Battery System
The IPV-12K48U operates with a 48V battery bank and supports lead-acid, lithium-ion and user-defined battery types. It can provide up to 210A MPPT charging current and up to 250A maximum battery discharge current.
High Backup Capability
The inverter provides 24kW surge power for up to 5 seconds and supports overload operation from 105–150% for 10 seconds and 150–200% for 5 seconds, making it suitable for systems with demanding loads and appliances with higher starting currents.
Dual MPPT & Smart Load
Dual MPPT technology helps optimize solar production from different panel orientations or strings. The inverter also supports Smart Load, allowing suitable loads to be managed separately from the main load.
Wi-Fi & Communication
The IPV-12K48U supports Wi-Fi, RS485, CAN, RS232 and Dry Contact communication, providing options for remote monitoring, battery communication and system integration.
IP54 Protection
With an IP54 protection rating, the inverter is protected against dust ingress and water splashes. For long-term reliability, professional installation in a suitable location is still recommended.
Parallel Operation
Multiple units can be connected for larger systems. The detailed specifications list support for up to 6 units in single-phase operation and up to 12 units for a three-phase system configuration.
Key Features
- 12kW rated output
- 48V battery system
- Single-phase hybrid inverter
- Up to 16kW PV input
- Dual MPPT
- 500V maximum PV voltage
- 85–450V MPPT range
- Up to 210A MPPT charging
- Up to 250A battery discharge
- 24kW surge power
- Smart Load support
- Wi-Fi monitoring
- Generator support
- IP54 protection
- Parallel operation support
- Intelligent fan cooling
- RS485 / CAN / RS232 / Dry Contact communication
