Description
MaxPower MP 5000-PRO – Technical Specifications
| Specification | Details |
|---|---|
| Brand | MaxPower |
| Series | PRO Series |
| Model | MP 5000-PRO |
| Battery Type | LiFePO₄ Lithium Battery |
| Nominal Energy | 5.12kWh |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 200Ah |
| System Class | 24V |
| Bulk Charge Voltage | 28.8V |
| Float Charge Voltage | 27.6V |
| Low Voltage | 25.6V |
| Standard Charge Current | 100A |
| Standard Discharge Current | 100A |
| Maximum Charge / Discharge Current | 200A* |
| Maximum Parallel Expansion | Up to 15 Batteries |
| Communication | CAN / RS485 |
| Protection Rating | IP20 |
| Charging Temperature | 0°C to +55°C |
| Discharging Temperature | -30°C to +60°C |
| Certifications | CE / UN38.3 |

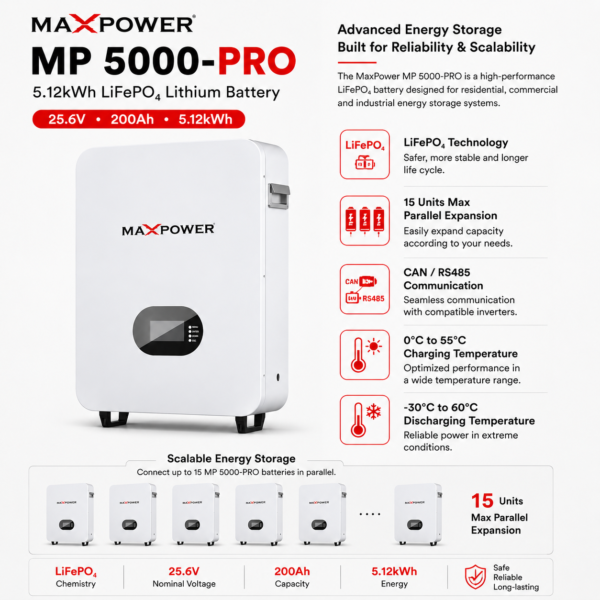

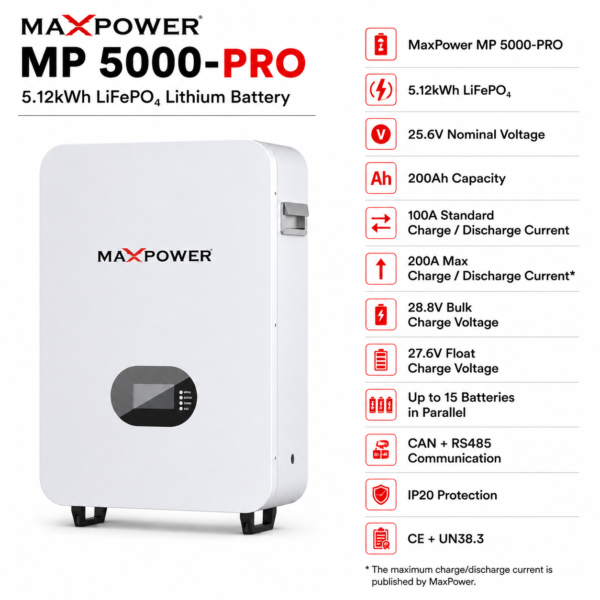

MaxPower MP 5000-PRO 5.12kWh Lithium Battery
The MaxPower MP 5000-PRO 5.12kWh Lithium Battery is a high-capacity LiFePO₄ energy-storage solution designed for compatible 24V-class hybrid solar and backup power systems.
With 25.6V nominal voltage, 200Ah capacity and 5.12kWh nominal energy, the MP 5000-PRO provides substantial battery storage while maintaining a low-voltage 24V-class architecture.
5.12kWh LiFePO₄ Energy Storage
The MP 5000-PRO uses Lithium Iron Phosphate (LiFePO₄) technology and provides 5.12kWh of nominal energy. LiFePO₄ chemistry offers strong thermal stability and is well suited to regular solar energy-storage applications.
25.6V 200Ah Architecture
Unlike conventional 51.2V 100Ah 5kWh batteries, the MP 5000-PRO uses a 25.6V 200Ah configuration, making it suitable for compatible 24V-class hybrid inverter systems.
High Charge & Discharge Capability
MaxPower specifies a 100A standard charge/discharge current and up to 200A maximum charge/discharge current, allowing the battery to support demanding compatible solar and backup applications.
Expandable Energy Storage
Up to 15 compatible batteries can be connected in parallel, allowing the energy-storage system to be expanded as backup requirements increase.
Smart Inverter Communication
The MP 5000-PRO supports CAN and RS485 communication for integration with compatible hybrid solar inverters and battery-management systems.
Built for Pakistan’s Climate
MaxPower specifies an operating temperature range of 0°C to 55°C during charging and -30°C to 60°C during discharging, providing a wide operating range for solar energy-storage applications.
Key Features
- 5.12kWh nominal energy
- 25.6V nominal voltage
- 200Ah battery capacity
- LiFePO₄ battery technology
- 100A standard charge/discharge current
- Up to 200A maximum charge/discharge current
- 28.8V bulk charge voltage
- 27.6V float charge voltage
- CAN communication
- RS485 communication
- Up to 15 batteries in parallel
- IP20 protection rating
- 0°C to 55°C charging temperature
- -30°C to 60°C discharging temperature
- CE certification
- UN38.3 certification
Compatible Applications
- 24V-class hybrid solar inverter systems
- Residential solar battery backup
- Shops and offices
- Off-grid solar installations
- Expandable lithium energy-storage systems
Buy the MaxPower MP 5000-PRO 5.12kWh Lithium Battery from Satluj Solar for genuine solar energy-storage equipment and professional system guidance.
