Jinko Tiger Neo III 645W – Technical Specifications
| Specification |
Details |
| Brand |
Jinko Solar |
| Series |
Tiger Neo III |
| Model |
JKM645N-66QL6-BDV |
| Module Type |
N-Type Monocrystalline Bifacial |
| Technology |
N-Type TOPCon |
| Maximum Power (Pmax) |
645 W |
| Module Efficiency |
23.88% |
| Maximum Power Voltage (Vmp) |
42.27 V |
| Maximum Power Current (Imp) |
15.26 A |
| Open-Circuit Voltage (Voc) |
49.88 V |
| Short-Circuit Current (Isc) |
15.98 A |
| Bifacial Factor |
85 ± 5% |
| Power Sorting |
0 ~ +3% |
| Temperature Coefficient of Pmax |
-0.26%/°C |
| Temperature Coefficient of Voc |
-0.24%/°C |
| Temperature Coefficient of Isc |
+0.046%/°C |
| Cell Type |
N-Type Monocrystalline |
| Number of Cells |
264 (66 × 4) |
| Front Glass |
2.0mm Anti-Glare Glass |
| Back Glass |
2.0mm Heat-Strengthened Glass |
| Frame |
Anodized Aluminium Alloy |
| Junction Box |
IP68 Rated |
| Maximum System Voltage |
1500 V DC (IEC) |
| Maximum Series Fuse Rating |
35 A |
| Protection Class |
Class II |
| IEC Fire Type |
Class C |
| Dimensions |
2382 × 1134 × 30 mm |
| Weight |
32.5 kg |
| Front Static Test Load |
5400 Pa |
| Rear Static Test Load |
2400 Pa |
| Product Warranty |
12 Years |
| Linear Power Warranty |
30 Years |
| First-Year Degradation |
1% |
| Annual Degradation Thereafter |
0.35% |

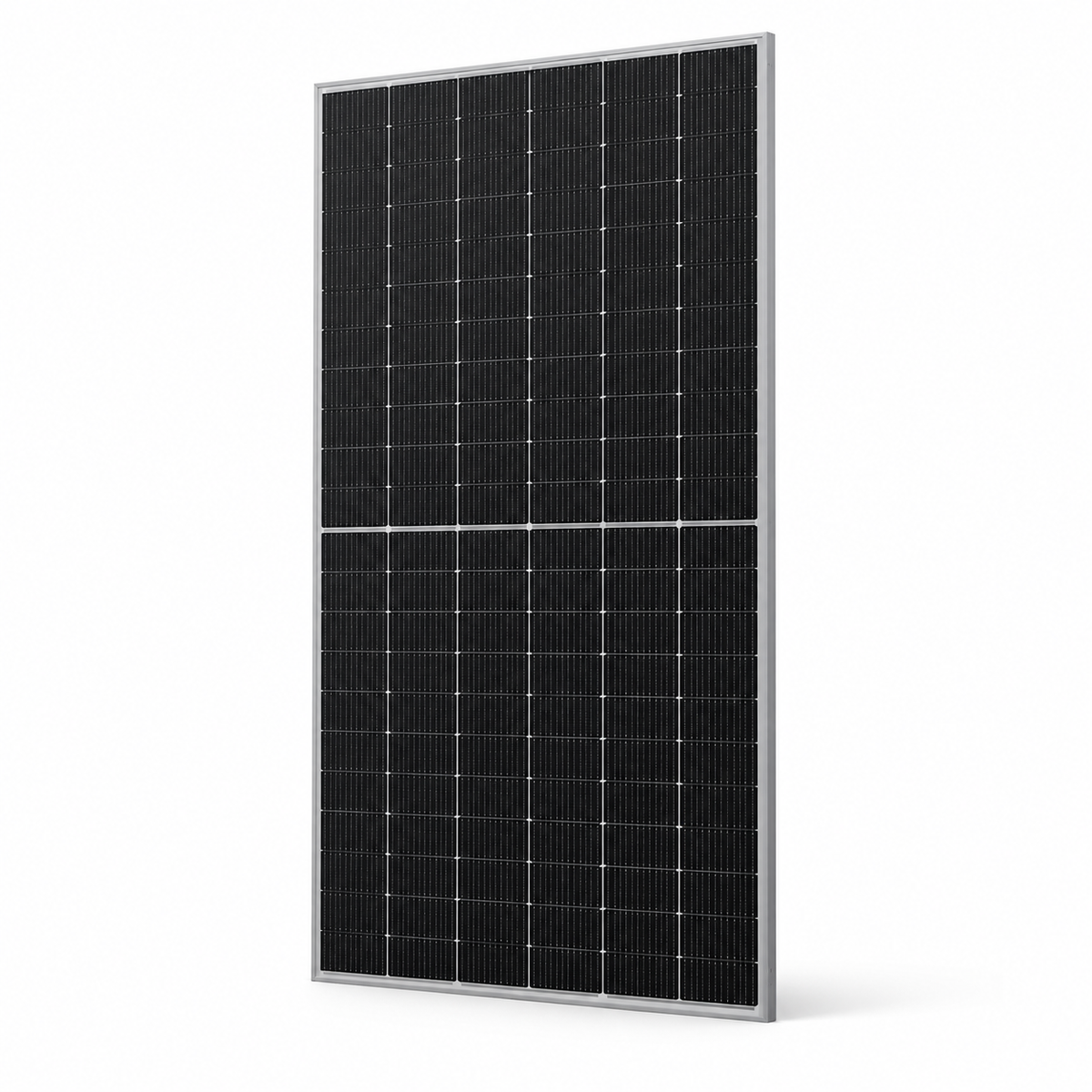

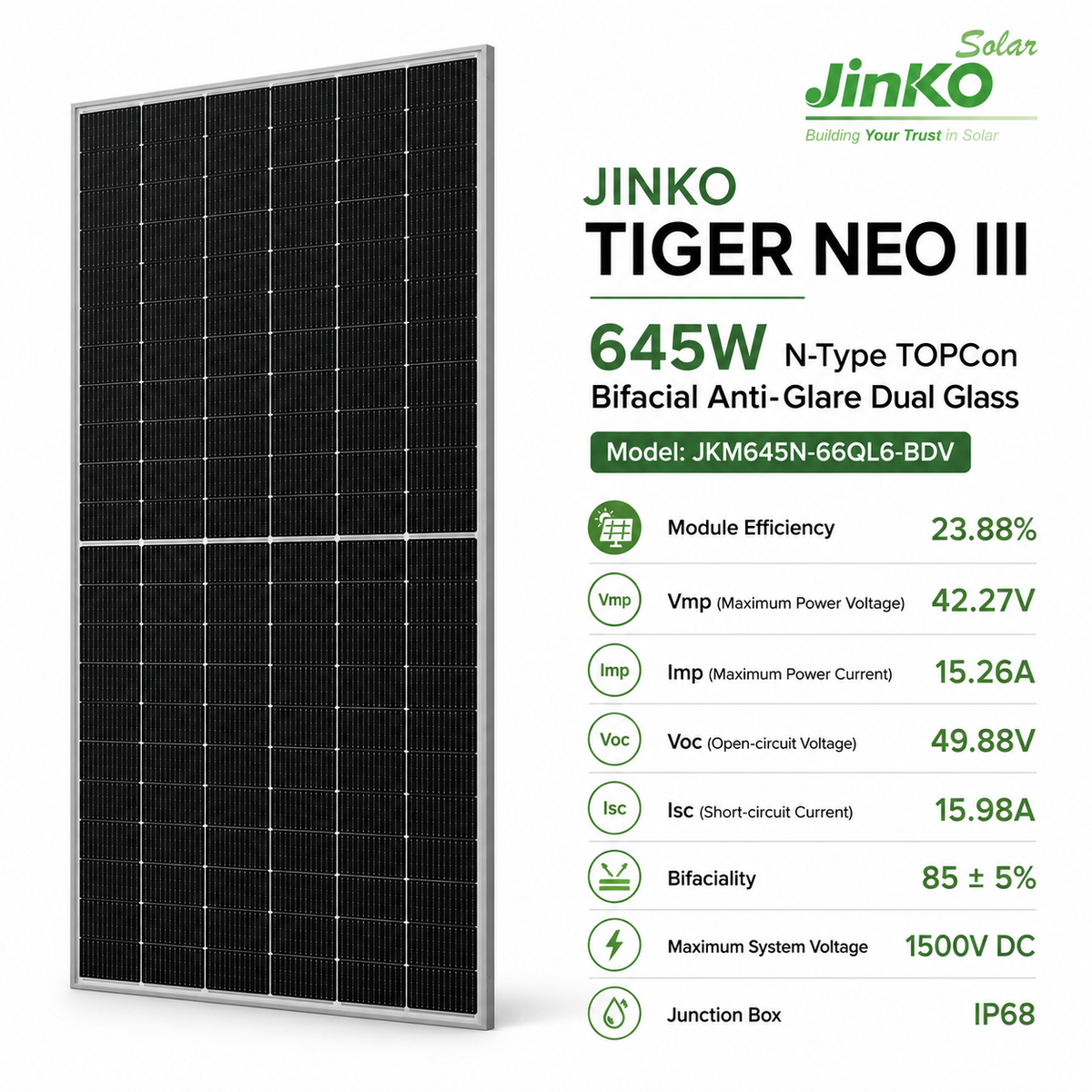

Jinko Tiger Neo III 645W N-Type Bifacial Solar Panel
The
Jinko Tiger Neo III 645W is a high-performance N-Type TOPCon bifacial dual-glass solar module designed for modern residential, commercial and utility-scale solar installations.
The 645W variant delivers a
23.88% module efficiency with advanced N-Type monocrystalline technology, high bifaciality and an anti-glare glass design.
645W High Power Output
With a rated maximum power output of
645W, the Tiger Neo III provides high power density for solar installations where maximizing generation from available installation space is important.
23.88% Module Efficiency
The 645W variant achieves
23.88% efficiency under STC, combining high power output with Jinko Solar's enhanced N-Type TOPCon platform.
N-Type TOPCon Technology
Jinko's enhanced N-Type TOPCon platform is designed for high front-side power output, strong low-light performance and optimized thermal performance.
85±5% Bifaciality
The bifacial dual-glass design enables the module to generate electricity from light reaching both the front and rear sides, with a specified bifacial factor of
85±5%.
Anti-Glare Glass
This specific Tiger Neo III variant features
2.0mm anti-glare front glass. According to Jinko Solar, the anti-glare feature significantly reduces glare intensity and is suitable for common glare-sensitive scenarios including residential areas.
Dual-Glass Construction
The module uses 2.0mm anti-glare front glass together with 2.0mm heat-strengthened rear glass and an anodized aluminium-alloy frame.
Excellent Temperature Performance
The module features a
-0.26%/°C Pmax temperature coefficient, helping reduce the effect of increasing module temperature on power output.
Enhanced Mechanical Strength
The Tiger Neo III is certified to withstand maximum static test loads of
5400Pa on the front side and
2400Pa on the rear side.
Long-Term Warranty
Jinko specifies a
12-year product warranty and
30-year linear power warranty, with 1% first-year degradation and 0.35% annual degradation thereafter.
Key Features
- 645W maximum power output
- 23.88% module efficiency
- N-Type monocrystalline TOPCon technology
- Bifacial dual-glass construction
- 85±5% bifaciality
- Anti-glare front glass
- 264 cells (66 × 4)
- 0 ~ +3% positive power sorting
- -0.26%/°C Pmax temperature coefficient
- 1500V DC maximum system voltage
- 35A maximum series fuse rating
- IP68-rated junction box
- 5400Pa front / 2400Pa rear static test load
- 12-year product warranty
- 30-year linear power warranty
Buy Jinko Tiger Neo III 645W Solar Panels from Satluj Solar for genuine high-performance solar modules and professional system guidance.
Additional specifications
| Brand |
Jinko Solar |
| Product Type |
Solar Panel |
| Power |
645W |
| Technology |
N-Type TOPCon |
