Knox Powerwall 6.0 – Technical Specifications
| Specification |
Details |
| Brand |
Knox |
| Product |
Powerwall 6.0 |
| Model |
LIO 5.20-IP20 |
| Battery Type |
LiFePO₄ |
| Nominal Energy |
5.12kWh / 5120Wh |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
100Ah |
| Pack Mode |
16S1P |
| Charge Cut-Off Voltage |
57.6V |
| Discharge Cut-Off Voltage |
44V |
| Continuous Discharge Current |
100A |
| Maximum Charge Current |
100A |
| Maximum Discharge Current |
100A |
| Peak Discharge Current |
120A |
| Recommended Discharge Current |
50A |
| Recommended Discharge Depth |
80% |
| Cycle Life |
>6000 Cycles (25°C, 0.5C) @ 80% DOD |
| Communication |
RS485 / RS232 / CAN |
| Display |
LED |
| Mounting |
Wall-Mounted |
| Ingress Protection |
IP20 |
| Charge Temperature |
0°C to +55°C |
| Discharge Temperature |
-20°C to +60°C |
| Optimal Storage Temperature |
5°C to +35°C |
| Relative Humidity |
40%–80% |
| Terminal |
M6 |
| Dimensions (L × W × H) |
533 × 500 × 150 mm |
| Weight |
45.1 ± 0.5 kg |
| Certifications |
UN38.3 / MSDS |
| Warranty |
5 Years |

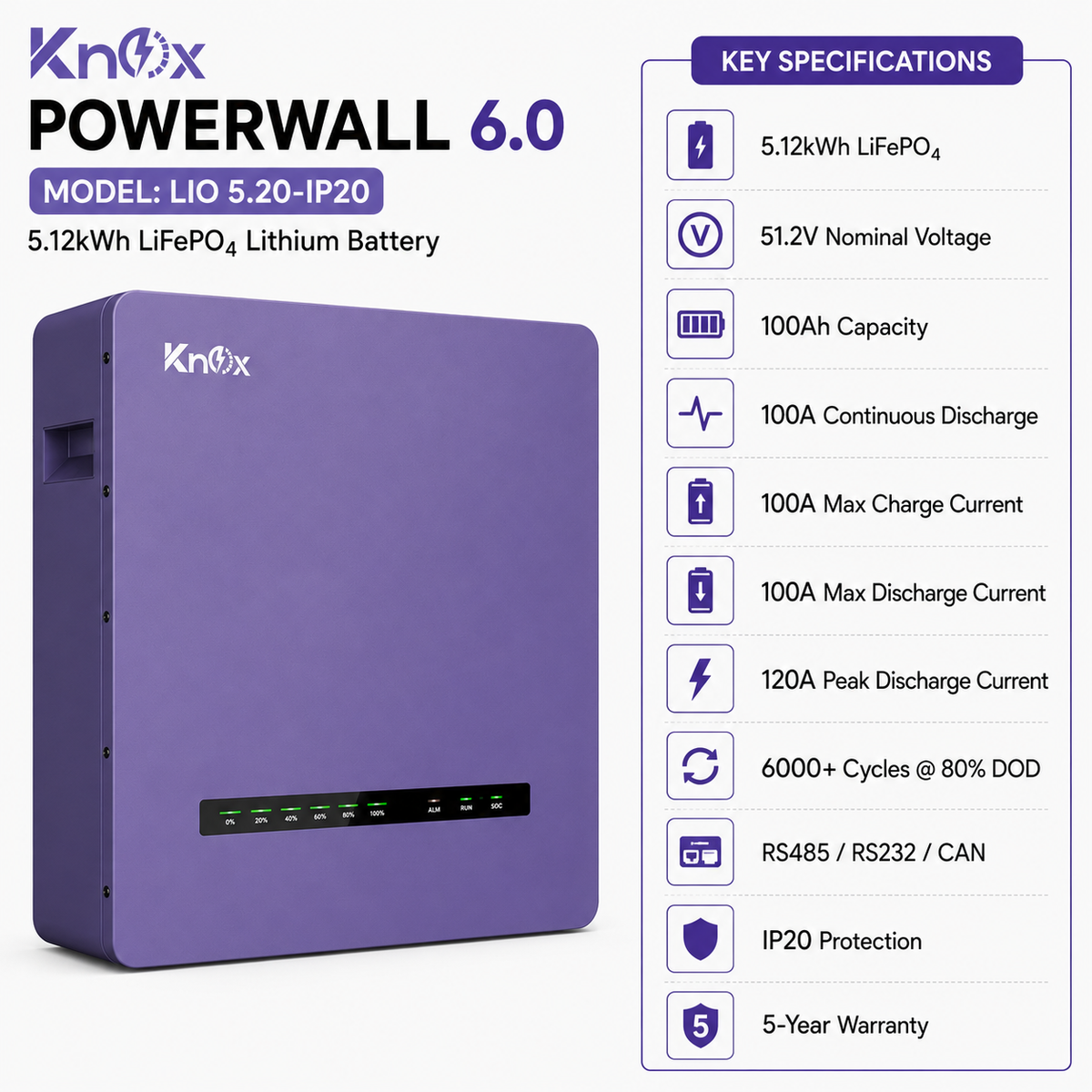

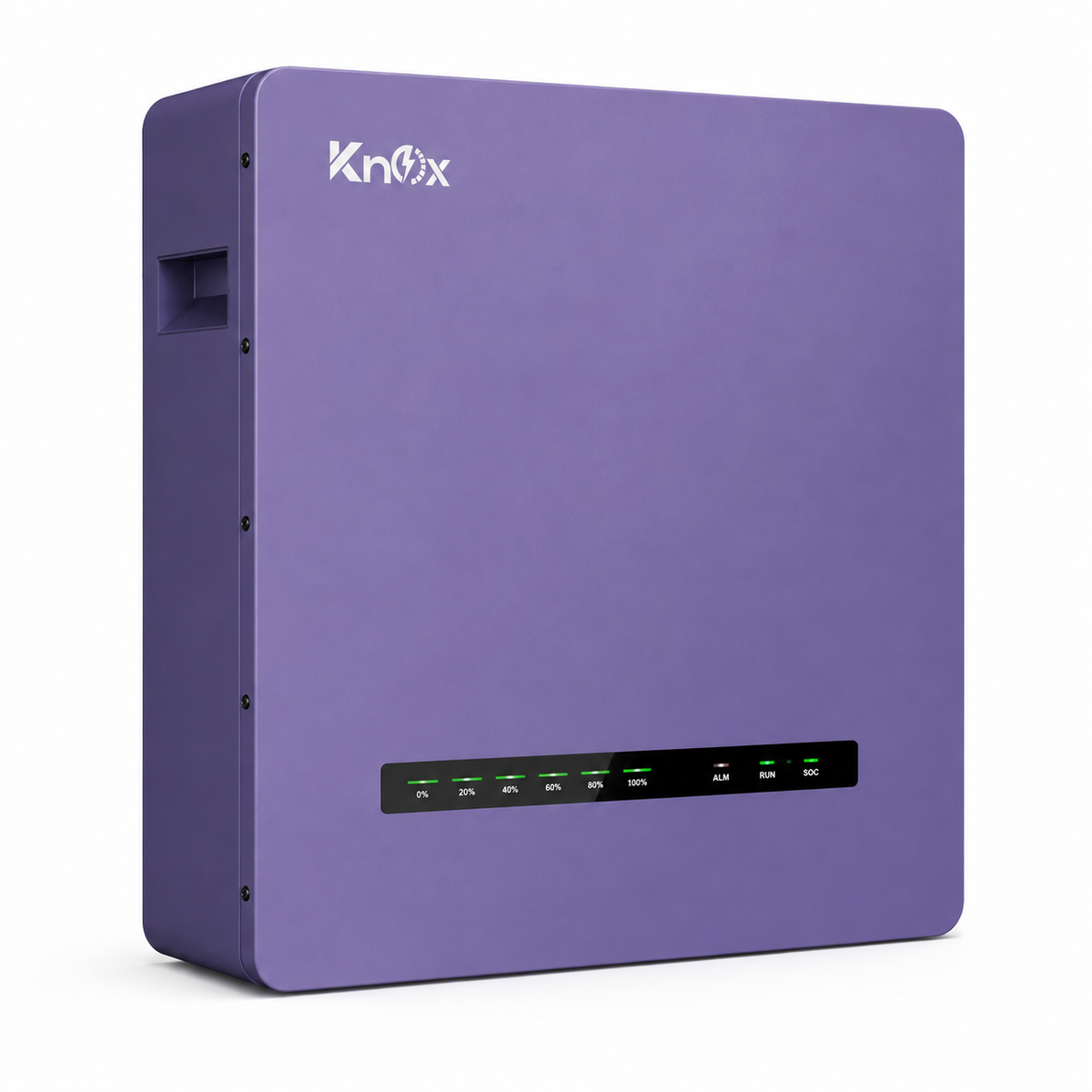

Knox Powerwall 6.0 5.12kWh Lithium Battery
The
Knox Powerwall 6.0 LIO 5.20-IP20 is a 5.12kWh wall-mounted LiFePO₄ lithium battery designed for compatible residential and commercial solar energy-storage systems.
Featuring a
51.2V nominal voltage,
100Ah capacity and
5120Wh energy storage, it provides a practical 48V-class battery solution for hybrid and off-grid solar applications.
A-Grade LiFePO₄ Cells
The Powerwall 6.0 uses A-grade brand-new prismatic LiFePO₄ cells. Its metal enclosure provides effective heat dissipation while the integrated battery management system provides multiple protection functions.
5.12kWh Energy Storage
The battery combines a 51.2V nominal voltage with 100Ah capacity to provide
5.12kWh (5120Wh) of nominal energy storage.
100A Continuous Discharge
The Powerwall 6.0 supports
100A continuous discharge, with a maximum charge current of 100A and maximum discharge current of 100A.
Peak discharge current reaches
120A, while the manufacturer's recommended discharge current is 50A.
6000+ Cycle Life
Knox specifies a cycle life of
more than 6000 cycles at 80% Depth of Discharge under the stated test conditions of 25°C and 0.5C.
PACE BMS & Battery Protection
The integrated battery management system provides protection against over-charge, over-discharge, over-temperature, low temperature, over-current and short circuit conditions.
A cell-balancing function is also provided to help manage individual cells within the battery pack.
Smart Inverter Communication
The battery provides
RS485, RS232 and CAN communication for integration with compatible solar inverter systems.
LED Status Display
Built-in LED status indication provides convenient battery operating information while maintaining low power consumption.
Wall-Mounted Design

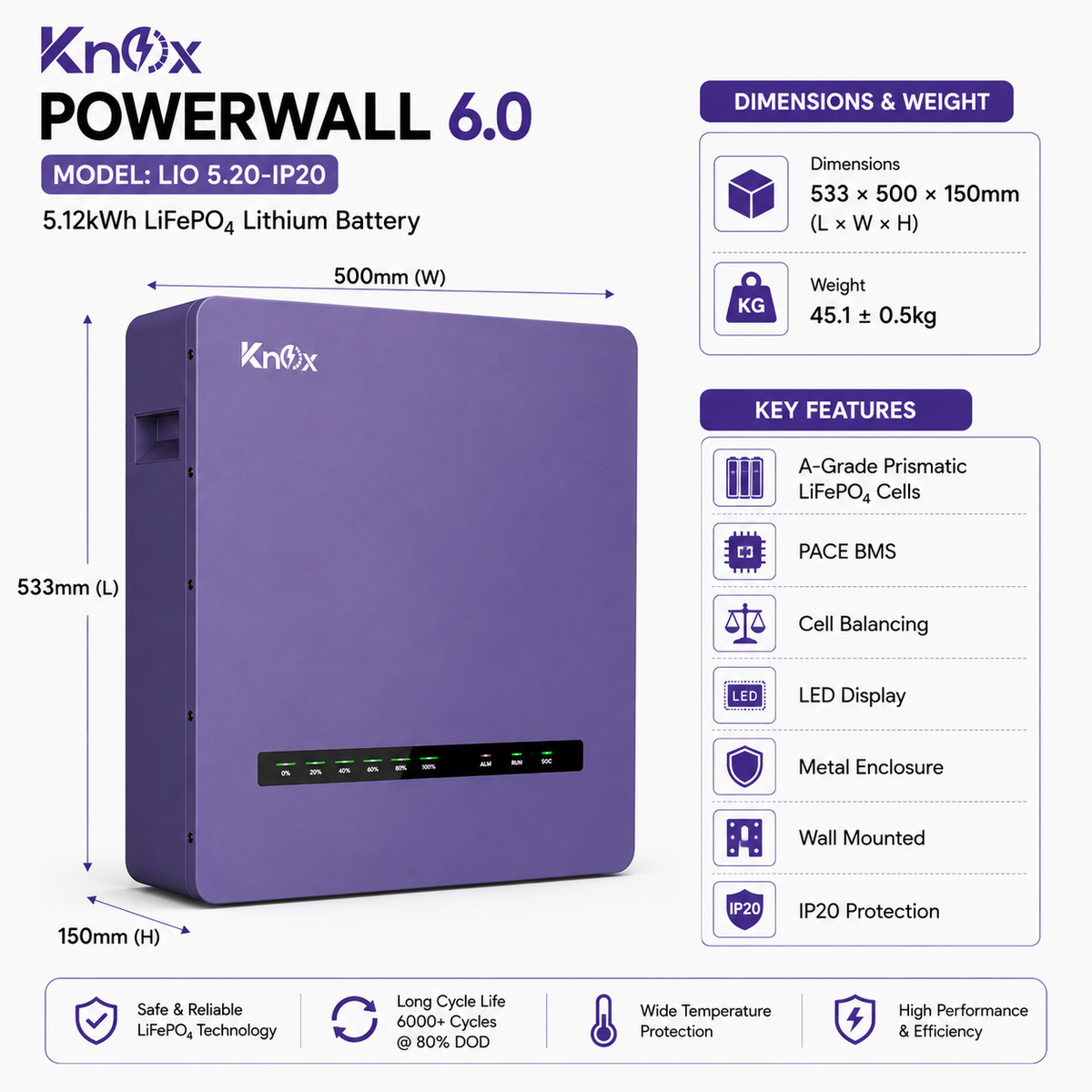

The Powerwall 6.0 uses a compact wall-mounted metal enclosure measuring 533 × 500 × 150mm, helping save floor space in indoor battery installations.
Key Features
- 5.12kWh / 5120Wh nominal energy
- 51.2V nominal voltage
- 100Ah nominal capacity
- A-grade prismatic LiFePO₄ cells
- 16S1P battery configuration
- 100A continuous discharge current
- 100A maximum charge current
- 100A maximum discharge current
- 120A peak discharge current
- 50A recommended discharge current
- 80% recommended discharge depth
- 6000+ cycles at 80% DOD
- PACE BMS
- Cell balancing
- RS485 / RS232 / CAN communication
- LED indicators
- Metal enclosure
- Wall-mounted installation
- IP20 ingress protection
- 5-year warranty
Ideal Applications
- Residential hybrid solar systems
- Home battery backup
- 48V-class solar systems
- Off-grid solar installations
- Small commercial backup systems
Buy the Knox Powerwall 6.0 5.12kWh Lithium Battery from Satluj Solar for genuine solar energy-storage equipment and professional system guidance.
Additional specifications
| Brand |
Knox |
| Product Type |
Lithium Battery |
| Capacity |
100Ah |
| System Class |
51.2V |
