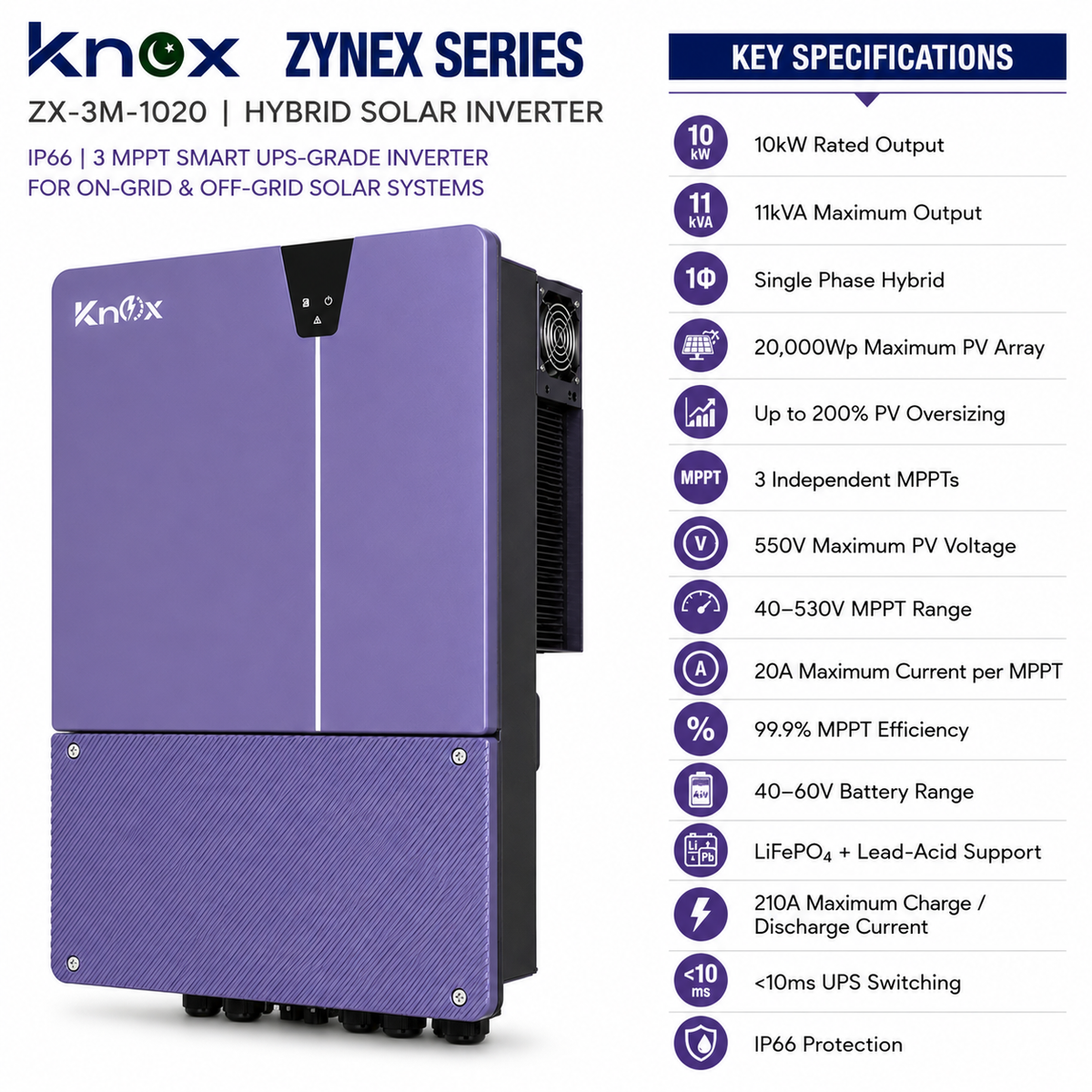

Knox Zynex ZX-3M-1020 10kW Hybrid Inverter – Technical Specifications
| Specification |
Details |
| Brand |
Knox |
| Series |
Zynex |
| Model |
ZX-3M-1020 |
| Inverter Type |
Hybrid Solar Inverter |
| Phase |
Single Phase |
| Rated Output Power |
10,000VA / 10kW |
| Maximum Output Power |
11,000VA |
| Output Voltage |
220 / 230 / 240V |
| Frequency |
50 / 60Hz |
| Total Harmonic Distortion |
<3% |
| Backup Switching Time |
<10ms |
| Maximum PV Array Power |
20,000Wp |
| PV Oversizing |
Up to 200% |
| Maximum PV Voltage |
550V |
| MPPT Voltage Range |
40–530V |
| Number of MPPT Trackers |
3 Independent MPPTs |
| Maximum Current per MPPT |
20A |
| MPPT Efficiency |
99.9% |
| Battery Type |
LiFePO4 / Lead-Acid |
| Battery Voltage Range |
40–60V |
| Maximum Charge / Discharge Power |
10kW |
| Maximum Charge / Discharge Current |
210A |
| BMS Communication |
CAN |
| Maximum Efficiency |
Up to 97.6% |
| Shade Management |
ShadeSol |
| On-Grid Operation |
Supported |
| Off-Grid Operation |
Supported |
| Generator Integration |
Supported |
| Black Start |
PV / Battery / Generator |
| Parallel Expansion |
Up to 30kW System Capacity |
| Protection Rating |
IP66 |
| Surge Protection |
Type II |
| Anti-Islanding Protection |
Yes |
| Ground Fault Monitoring |
Yes |
| Residual Current Monitoring |
Yes |
| AC Short Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Cooling |
Smart Cooling |
| Operating Temperature |
-25°C to +60°C |
| Maximum Operating Altitude |
3000m |
| User Interface |
LED Display & KNOX App |
| WiFi |
2.4GHz WiFi Dongle |
| LAN |
100Mbps |
| Communication |
RS485 / Modbus RTU / Modbus TCP |

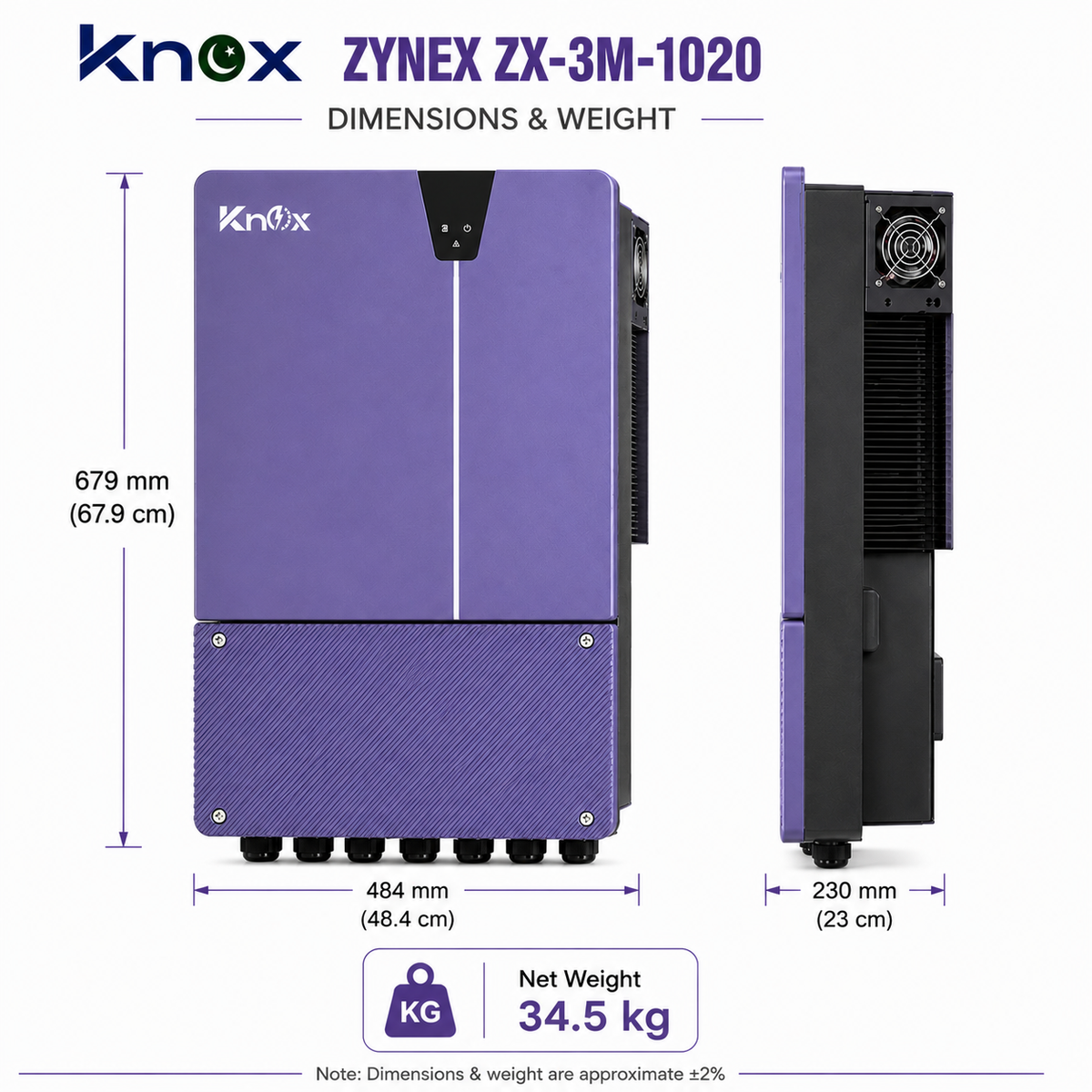

| Dimensions (W × H × D) |
484 × 679 × 230 mm |
| Dimensions in cm |
48.4 × 67.9 × 23 cm |
| Net Weight |
34.5 kg |

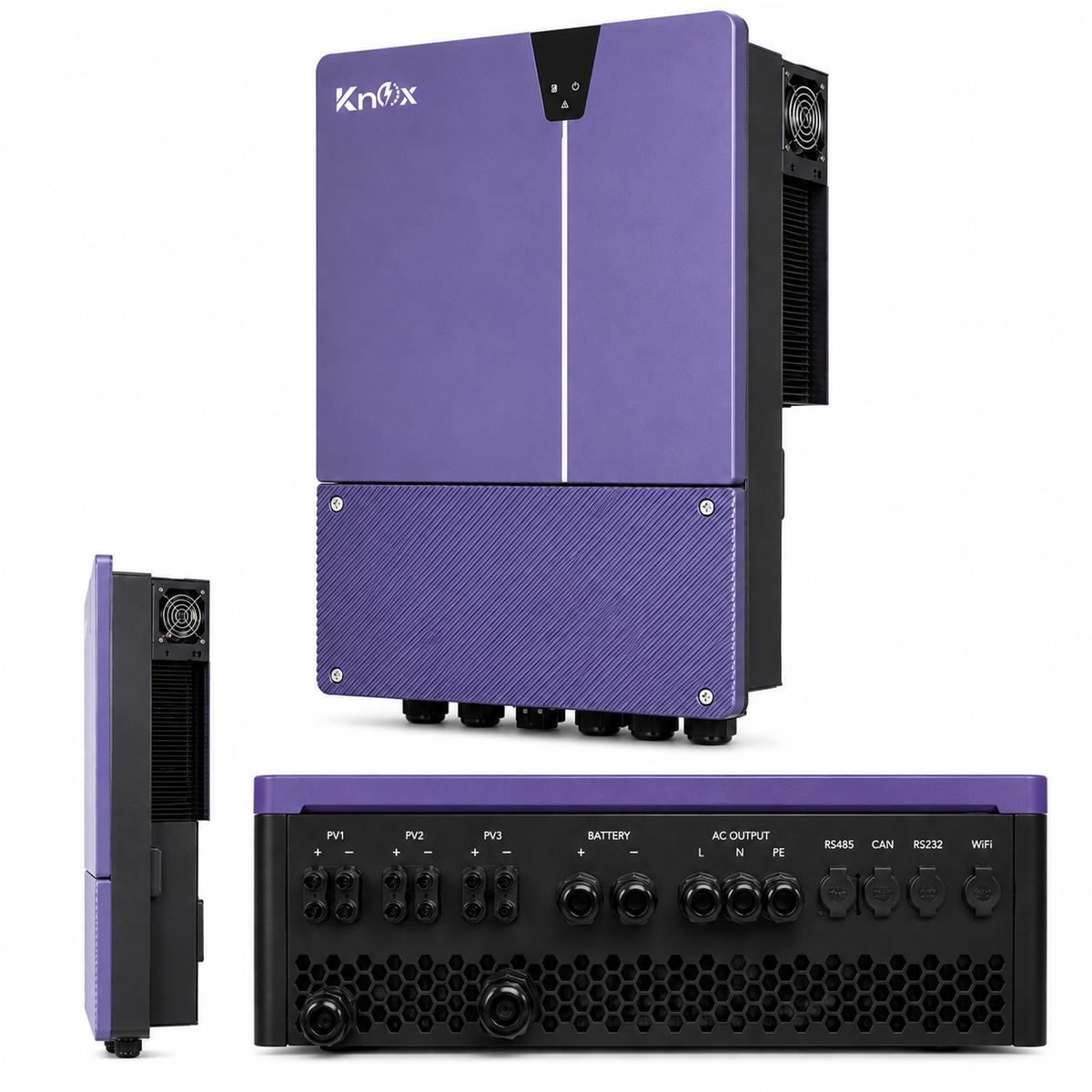

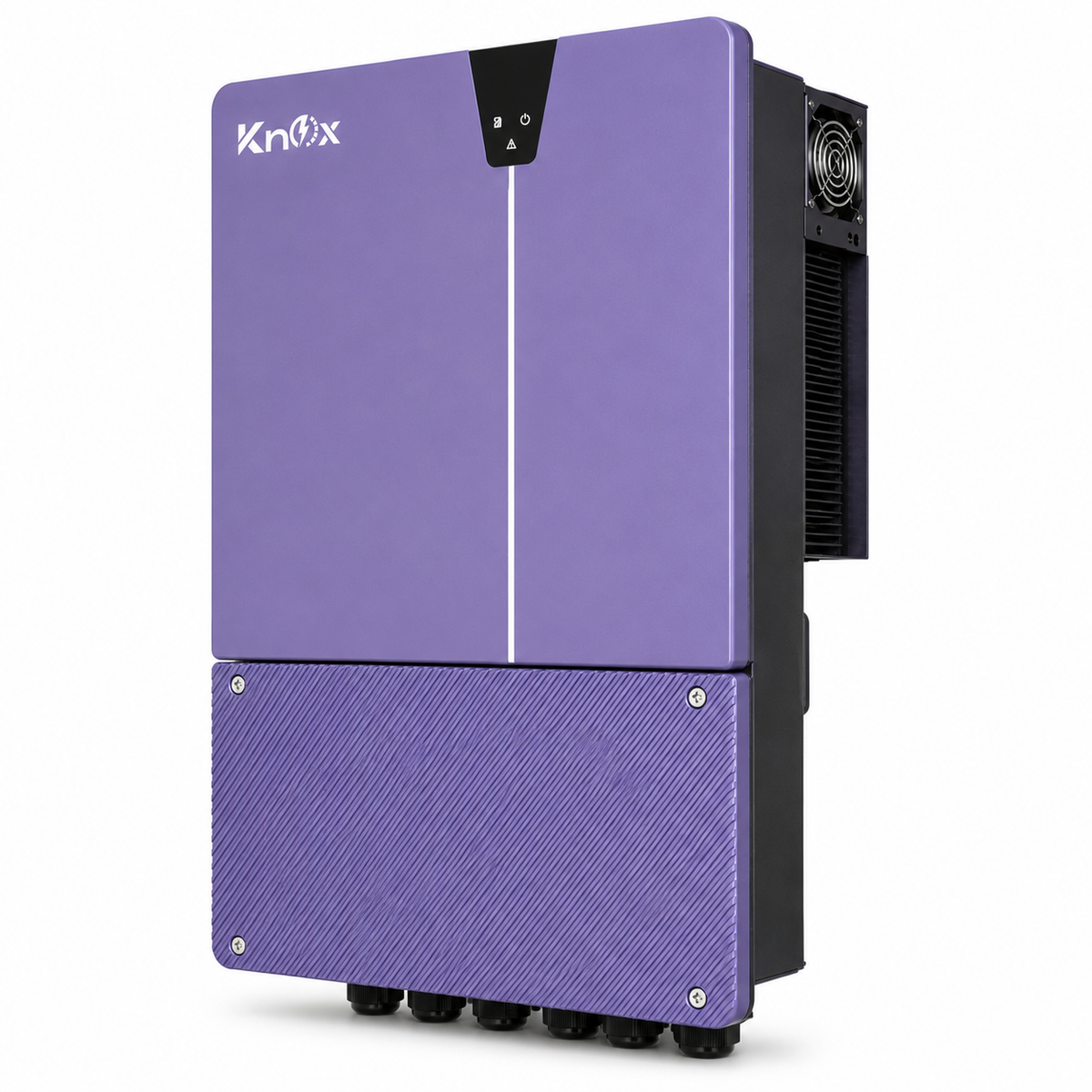

Knox Zynex ZX-3M-1020 10kW Hybrid Solar Inverter
The
Knox Zynex ZX-3M-1020 10kW Hybrid Solar Inverter is a high-capacity single-phase hybrid inverter designed for large residential and commercial solar systems. It combines powerful solar input capability, battery backup, grid operation and generator integration in an IP66-rated platform.
With
10kW rated output, up to
20,000Wp maximum PV array power and three independent MPPT trackers, the Zynex ZX-3M-1020 provides excellent flexibility for modern high-capacity solar installations.
20kW PV Capacity & 3 Independent MPPTs
The Zynex ZX-3M-1020 supports up to
20,000Wp PV array power, allowing up to 200% PV oversizing. Three independent MPPT trackers provide greater flexibility for multiple solar strings, different panel orientations and changing sunlight conditions.
The inverter supports a
550V maximum PV voltage, wide
40–530V MPPT range, up to
20A current per MPPT and 99.9% MPPT efficiency.
48V Lithium & Lead-Acid Battery Support
The inverter operates with a
40–60V low-voltage battery system and supports both
LiFePO4 lithium and lead-acid batteries.
The 10kW model provides up to
10kW battery charge/discharge power and
210A maximum charging/discharging current. CAN communication enables BMS integration with compatible lithium batteries.
10kW Output with 11kVA Maximum Power
The ZX-3M-1020 delivers
10,000VA rated output and up to
11,000VA maximum output, making it suitable for large homes, offices, shops and other higher-load applications.
Fast UPS-Grade Backup
With a switching time of
less than 10 milliseconds, the Zynex Series provides fast transition to backup operation when used with a compatible battery system.
ShadeSol Shadow Management
Knox ShadeSol technology is designed to improve solar energy harvesting under partial shading and changing sunlight conditions.
IP66 Protection
The
IP66-rated enclosure provides strong protection against dust and water ingress, making the inverter suitable for demanding installation environments when installed according to manufacturer requirements.
On-Grid, Off-Grid & Generator Operation
The Zynex platform supports both on-grid and off-grid applications together with battery and generator integration. Multi-source black-start capability provides additional flexibility for backup-oriented solar installations.
Smart Monitoring
System performance can be monitored through the
KNOX App. Communication options include WiFi, LAN, RS485 Modbus RTU and Modbus TCP.
Key Features
- 10kW single-phase hybrid solar inverter
- 11kVA maximum output power
- 20,000Wp maximum PV array power
- Up to 200% PV oversizing
- 3 independent MPPT trackers
- 550V maximum PV voltage
- 40–530V MPPT voltage range
- 20A maximum current per MPPT
- 99.9% MPPT efficiency
- 40–60V low-voltage battery system
- LiFePO4 and lead-acid battery support
- 210A maximum charge/discharge current
- CAN BMS communication
- <10ms backup switching
- Up to 97.6% efficiency
- ShadeSol shadow management
- IP66 protection
- Generator integration
- On-grid and off-grid operation
- WiFi and LAN monitoring
- KNOX App support
Ideal Applications
- Large residential solar systems
- High-load single-phase homes
- Large lithium battery backup systems
- Offices and shops
- Commercial solar installations
- Solar + grid + battery systems
- Generator-assisted hybrid systems
Buy the Knox Zynex ZX-3M-1020 10kW Hybrid Solar Inverter from Satluj Solar for genuine solar equipment and professional system guidance.
Additional specifications
| Brand |
Knox |
| Phase |
Single Phase |
| Product Type |
Hybrid Inverter |
| Rated Power |
10kW |
