MaxPower MP 16000-PRO – Technical Specifications
| Specification |
Details |
| Brand |
MaxPower |
| Series |
PRO Series |
| Model |
MP 16000-PRO |
| Battery Chemistry |
LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Energy |
16.07kWh |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
314Ah |
| System Class |
48V |
| Standard Charge / Discharge Current |
118A |
| Maximum Charge / Discharge Current |
235A |
| Charge Power |
6.04kW |
| Discharge Power |
12kW |
| Display |
Touch LCD |
| Status Indicators |
SOC + LED |
| Communication |
CAN / RS485 |
| Maximum Parallel Expansion |
Up to 15 Batteries |
| Installation |
Floor Stand |
| Protection Rating |
IP20 |
| Charging Temperature |
0°C to +55°C |
| Discharging Temperature |
-30°C to +60°C |

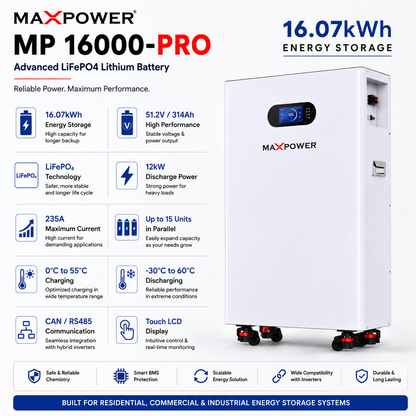

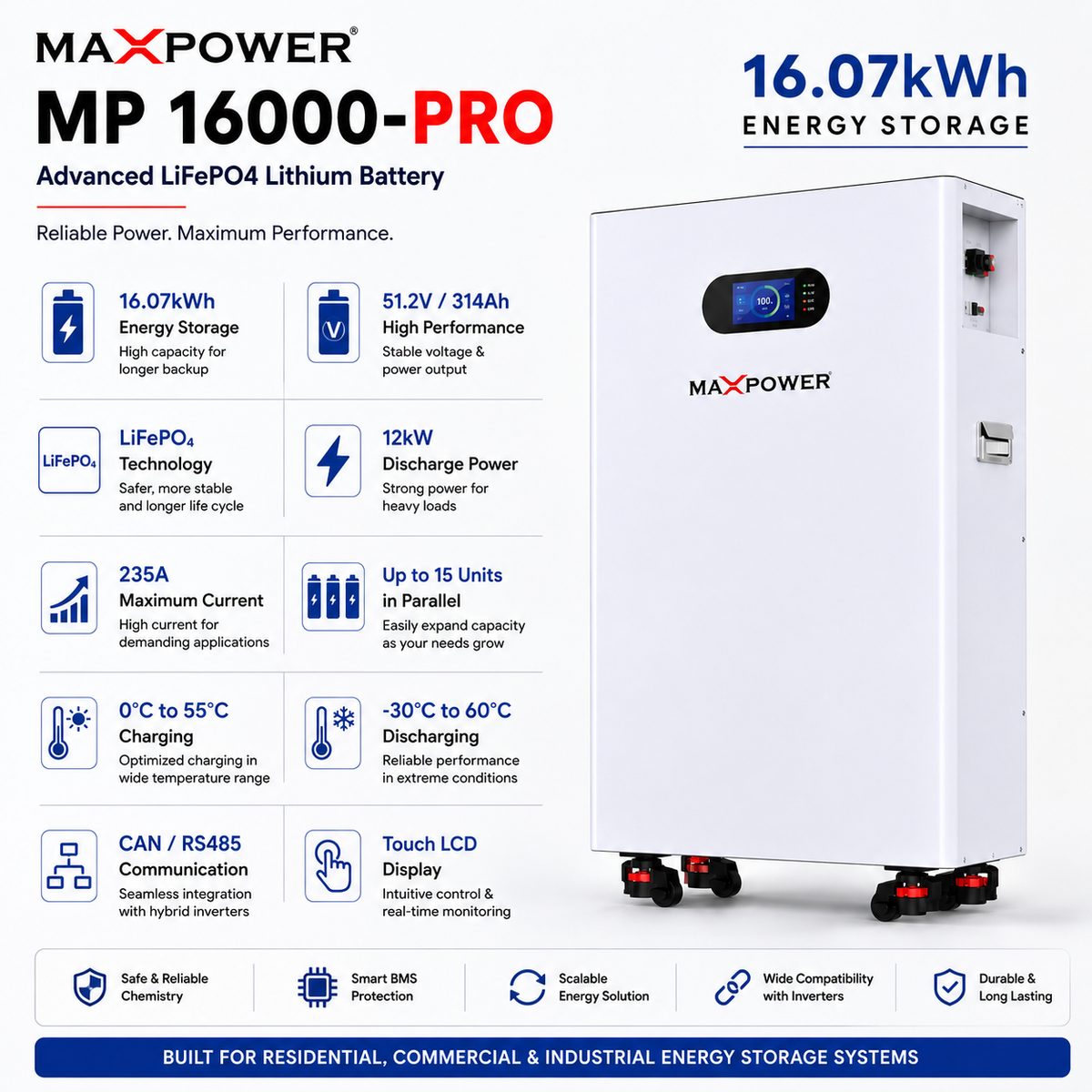

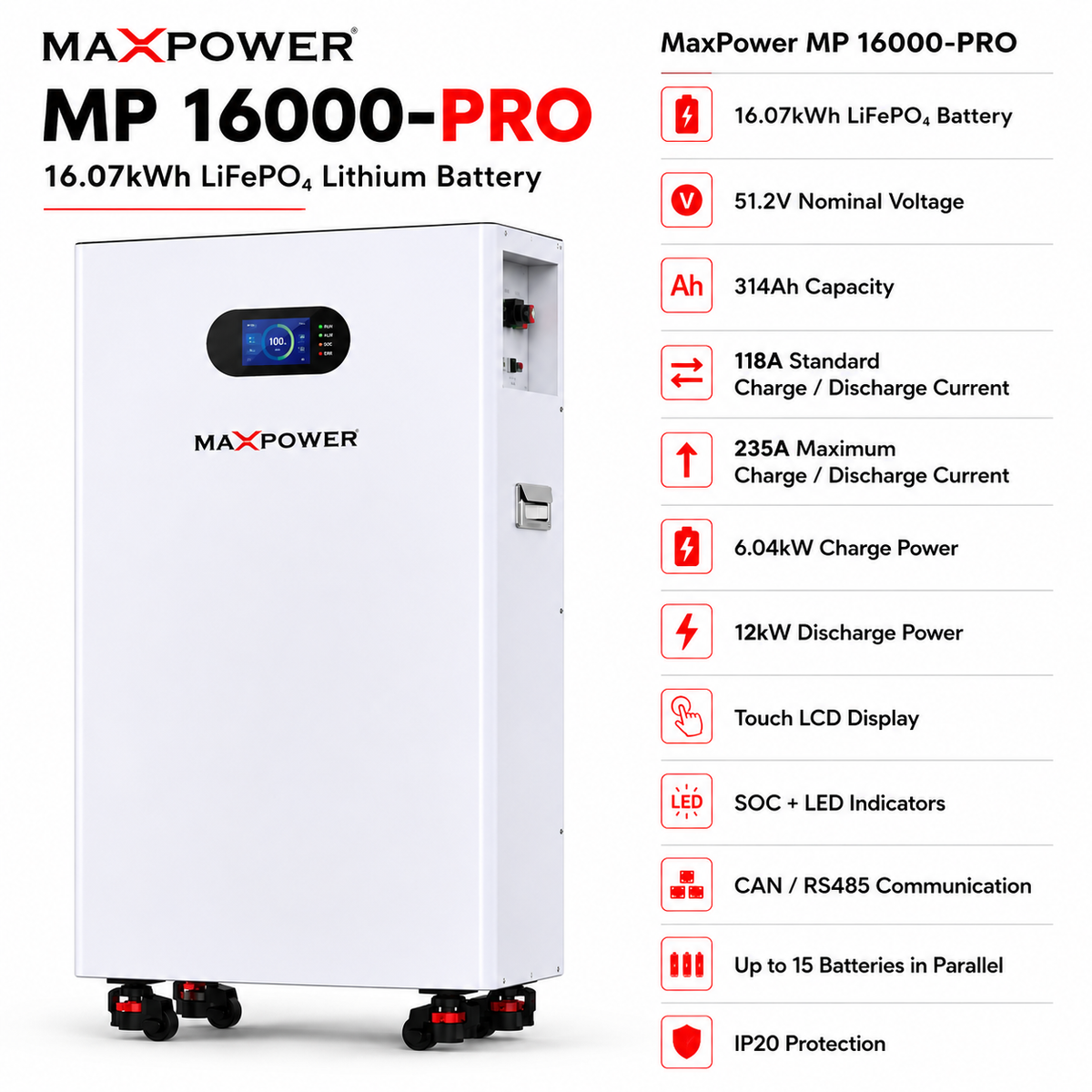

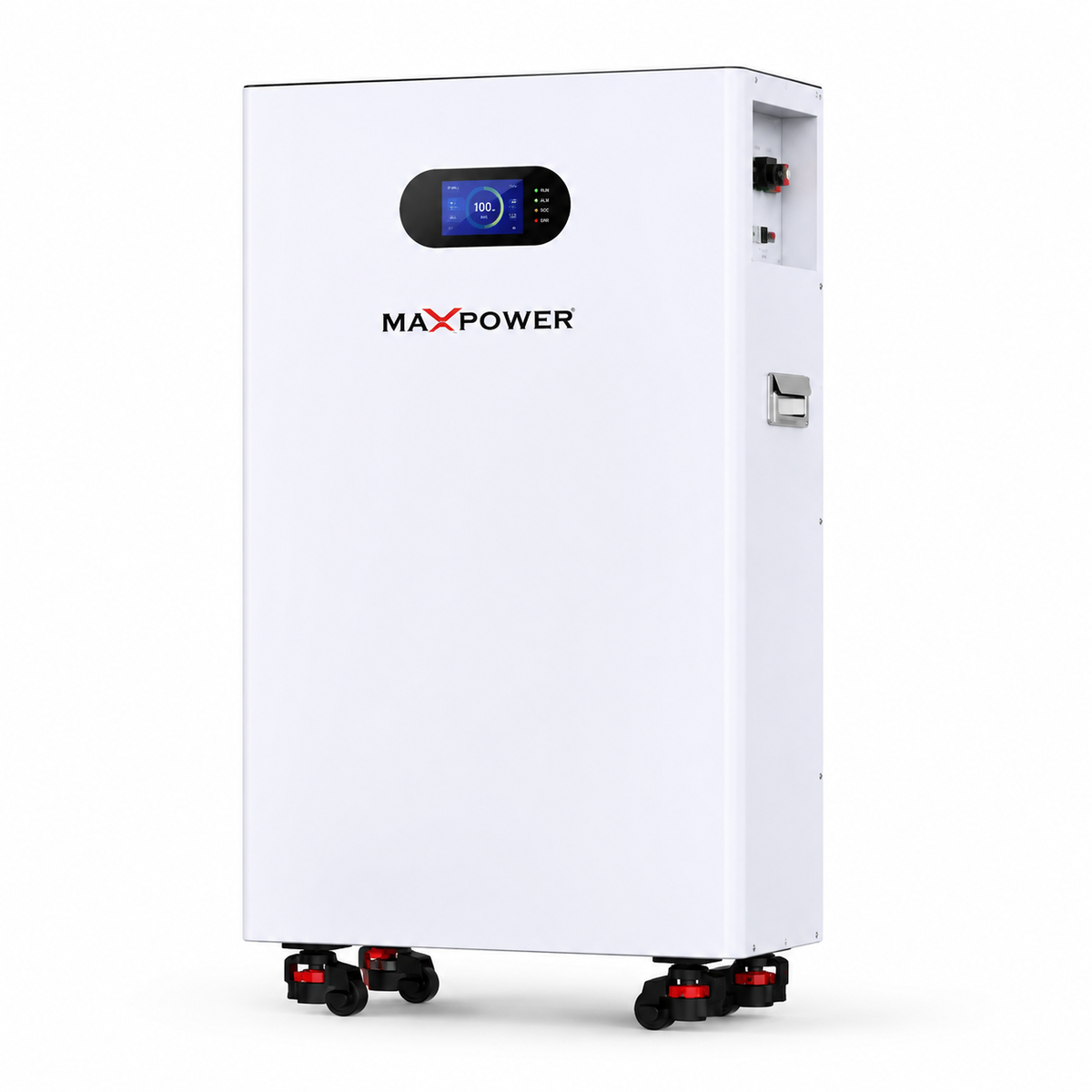

MaxPower MP 16000-PRO 16.07kWh Lithium Battery
The
MaxPower MP 16000-PRO is a high-capacity LiFePO₄ lithium battery designed for large residential, commercial and advanced solar energy-storage systems.
With
51.2V nominal voltage,
314Ah capacity and
16.07kWh nominal energy, the MP 16000-PRO provides substantial backup capacity for demanding solar installations.
16.07kWh High-Capacity Energy Storage
The MP 16000-PRO provides
16.07kWh of nominal energy, making it suitable for large homes, offices, shops, commercial buildings and other systems requiring extended battery backup.
LiFePO₄ Battery Technology
The battery uses Lithium Iron Phosphate (LiFePO₄) chemistry, offering strong thermal stability and suitability for modern solar energy-storage applications.
Powerful Charge & Discharge Performance
MaxPower specifies a
118A standard charge/discharge current and up to
235A maximum charge/discharge current.
The MP 16000-PRO provides up to
6.04kW charge power and
12kW discharge power, making it suitable for high-load compatible hybrid solar systems.
Touch LCD & Status Monitoring
A built-in
Touch LCD, SOC display and LED indicators provide convenient access to battery status and operating information.
Smart Inverter Communication
The battery supports
CAN and RS485 communication for integration with compatible hybrid solar inverters and battery-management systems.
Expandable Battery Storage
Up to
15 compatible MP 16000-PRO batteries can be connected in parallel, allowing the storage system to scale for larger residential and commercial applications.
Wide Operating Temperature Range
The battery is specified for charging between
0°C and 55°C and discharging between
-30°C and 60°C.
Key Features
- 16.07kWh nominal energy
- 51.2V nominal voltage
- 314Ah battery capacity
- LiFePO₄ battery chemistry
- 118A standard charge/discharge current
- 235A maximum charge/discharge current
- 6.04kW charge power
- 12kW discharge power
- Touch LCD display
- SOC and LED indicators
- CAN / RS485 communication
- Up to 15 batteries in parallel
- Floor-standing installation
- IP20 protection
Ideal Applications
- Large residential solar systems
- Commercial solar installations
- High-load hybrid inverter systems
- Large lithium battery backup systems
- Off-grid energy storage
- Expandable solar battery banks
Buy the MaxPower MP 16000-PRO 16.07kWh Lithium Battery from Satluj Solar for genuine solar energy-storage equipment and professional system guidance.
Additional specifications
| Brand |
Maxpower |
| Product Type |
Lithium Battery |
| Capacity |
314Ah |
| System Class |
48V |
