MaxPower MP 32000-PRO – Technical Specifications
| Specification |
Details |
| Brand |
MaxPower |
| Series |
PRO Series |
| Model |
MP 32000-PRO |
| Battery Chemistry |
LiFePO₄ (Lithium Iron Phosphate) |
| Battery Energy |
32.15kWh |
| Nominal Voltage |
51.2V DC |
| Nominal Capacity |
628Ah |
| System Class |
48V |
| Standard Charge / Discharge Current |
150A |
| Maximum Charge / Discharge Current |
300A |
| Charge Power |
7.68kW |
| Discharge Power |
15.3kW |
| Display |
Touch-Screen LCD |
| Status Indicators |
SOC + LED |
| Communication |
CAN / RS485 |
| Maximum Parallel Expansion |
Up to 15 Batteries |
| Installation |
Floor Stand |
| Protection Rating |
IP20 |
| Charging Temperature |
0°C to +55°C |
| Discharging Temperature |
-30°C to +60°C |
| Operating / Storage Humidity |
≤95% RH |

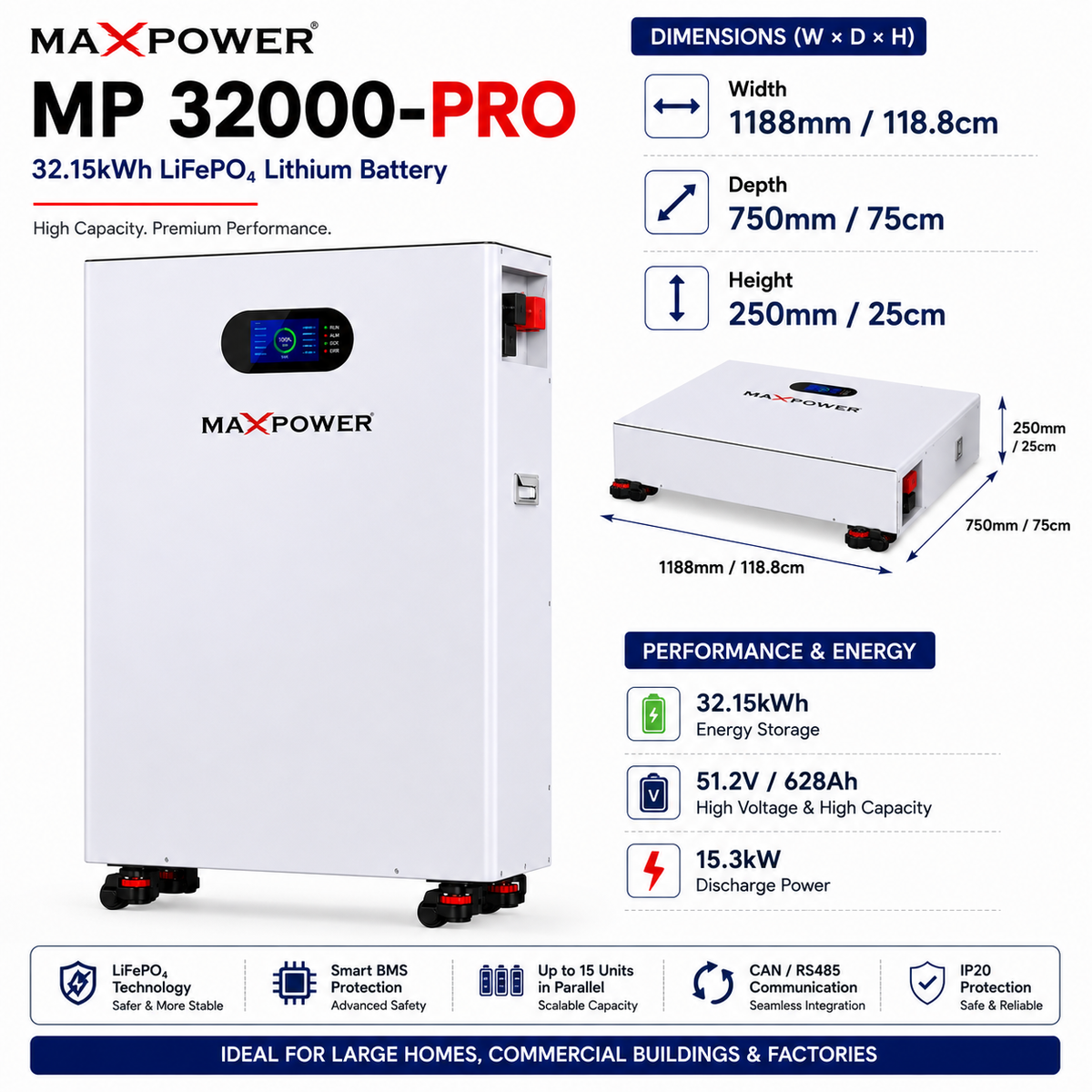

| Dimensions (W × D × H) |
1188 × 750 × 250 mm |
| Dimensions in cm |
118.8 × 75 × 25 cm |
| Certifications |
CE / UN38.3 |

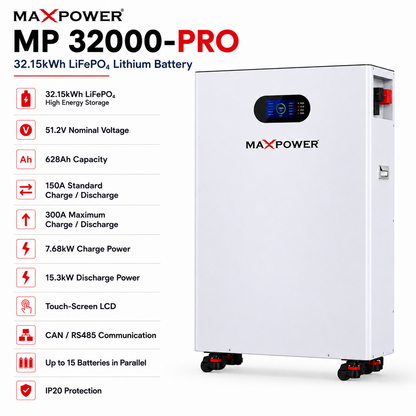

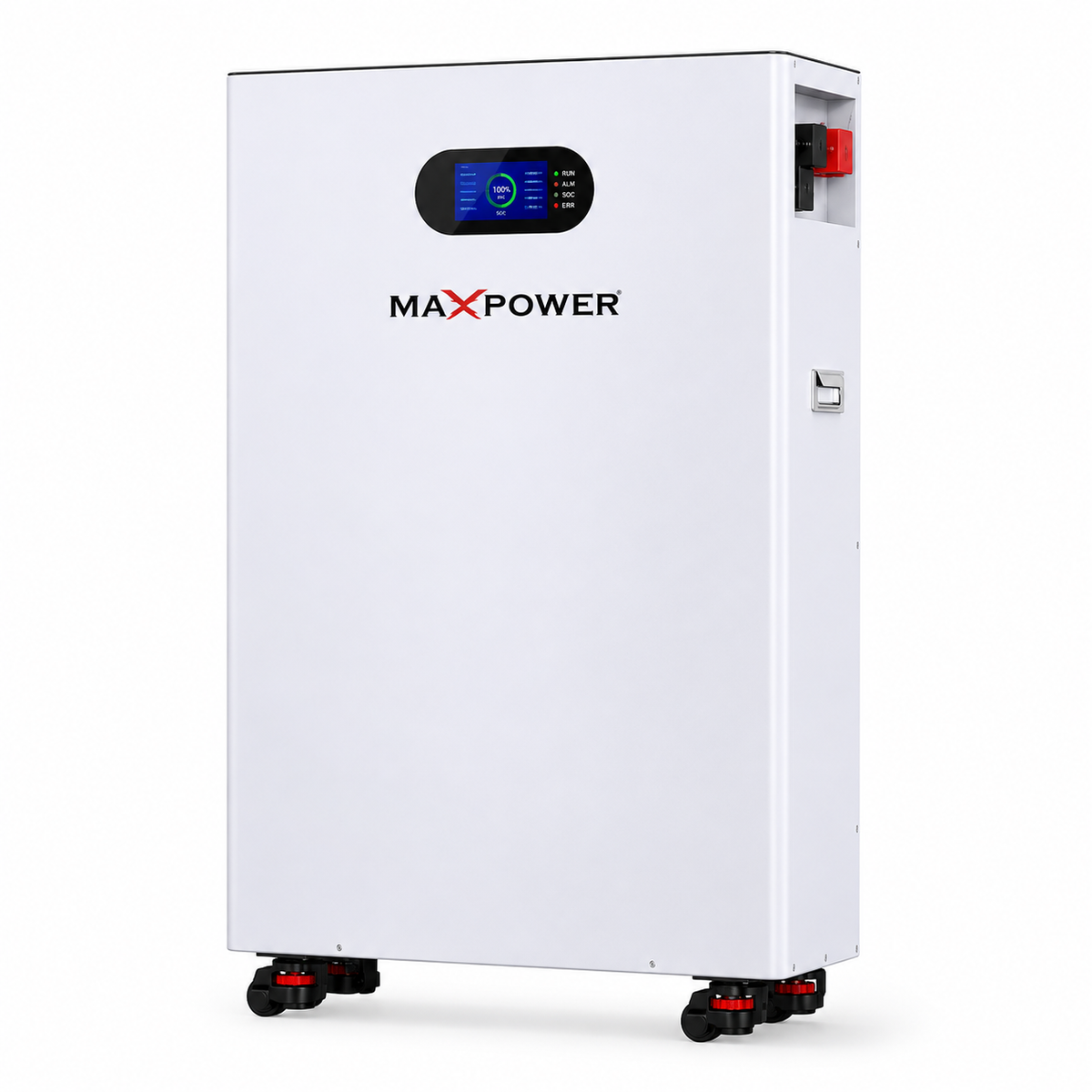

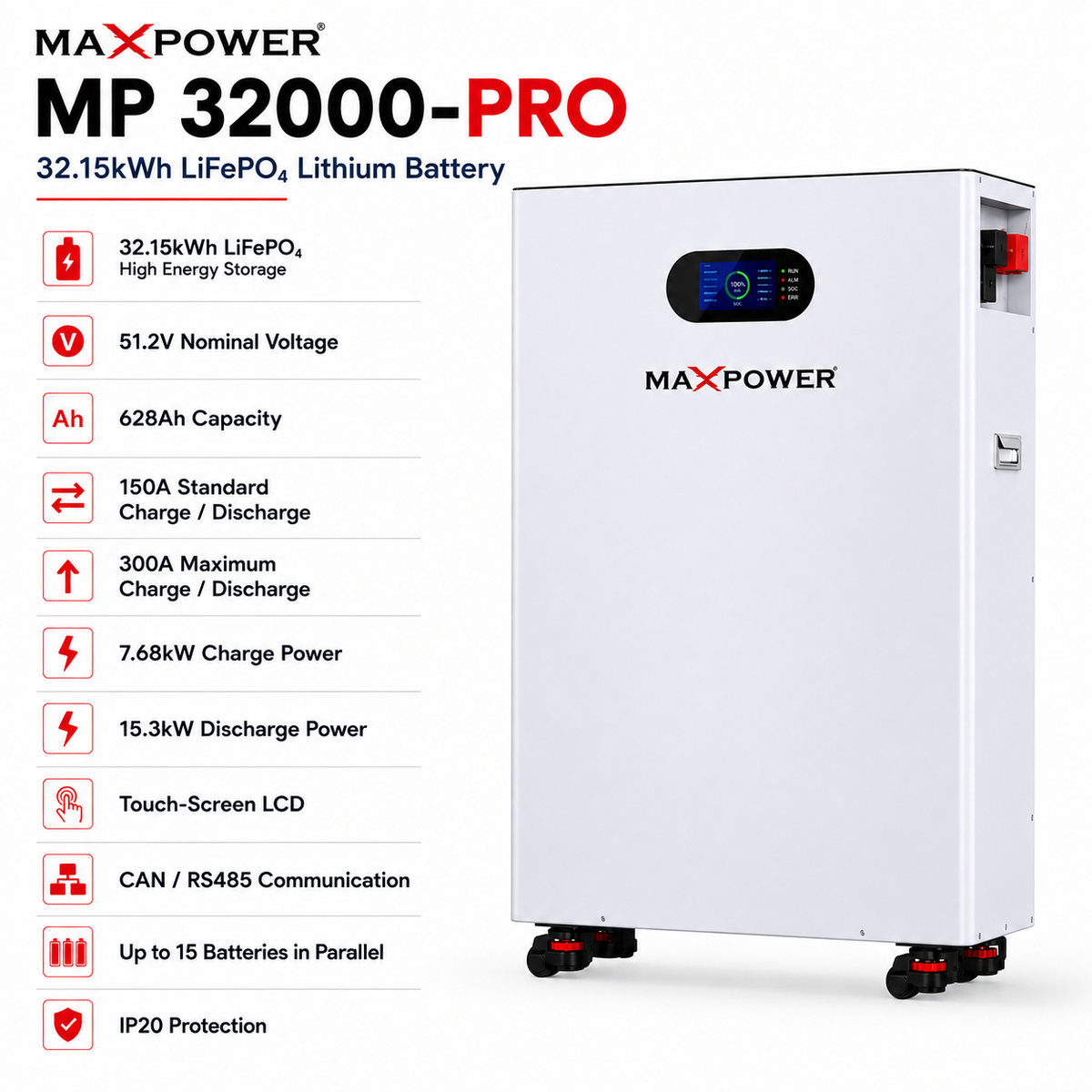

MaxPower MP 32000-PRO 32.15kWh Lithium Battery
The
MaxPower MP 32000-PRO is a heavy-duty LiFePO₄ lithium battery designed for large residential, commercial and industrial solar energy-storage applications.
Featuring
51.2V nominal voltage,
628Ah capacity and an impressive
32.15kWh of energy storage, the MP 32000-PRO provides substantial backup capacity for high-demand solar systems.
Massive 32.15kWh Energy Storage
With 32.15kWh of battery energy, the MP 32000-PRO is designed for applications where conventional 5kWh or 10kWh lithium batteries may not provide sufficient backup capacity.
51.2V 628Ah LiFePO₄ Technology
The battery uses Lithium Iron Phosphate (LiFePO₄) chemistry with a 51.2V nominal voltage and 628Ah capacity, providing a high-capacity low-voltage energy-storage platform.
15.3kW Discharge Power
The MP 32000-PRO supports a
150A standard charge/discharge current and up to
300A maximum charge/discharge current.
Maximum charge power is rated at
7.68kW, while discharge power reaches
15.3kW, making this battery suitable for demanding compatible hybrid solar systems.
Touch-Screen LCD Monitoring
A modern touch-screen LCD together with SOC and LED indicators provides convenient real-time battery status monitoring.

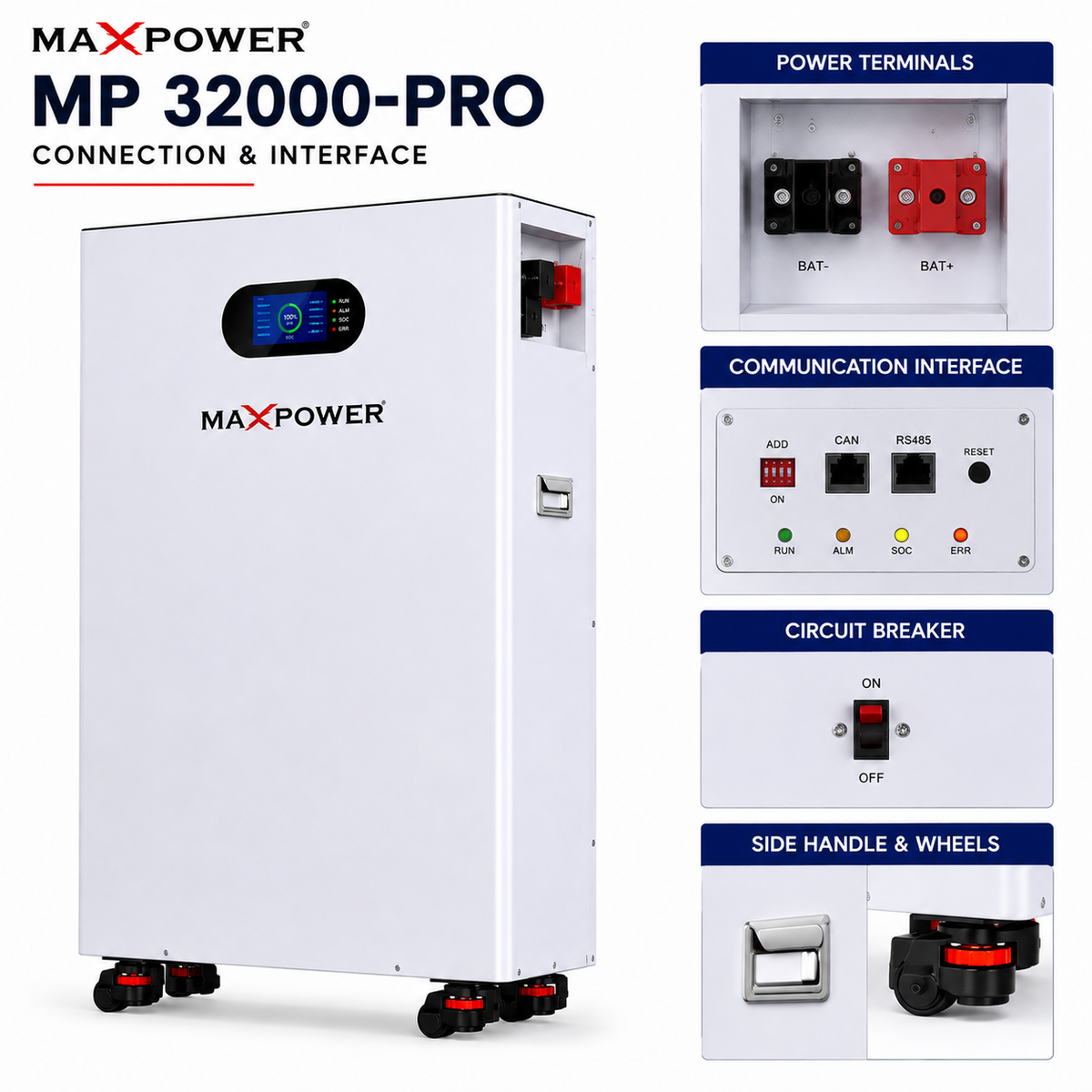

CAN & RS485 Communication
The MP 32000-PRO supports CAN and RS485 communication for integration with compatible hybrid solar inverters and energy-management systems.
Expandable High-Capacity Storage
Up to
15 compatible batteries can be connected in parallel, providing extensive scalability for large commercial and industrial energy-storage applications.
Built for Demanding Applications
MaxPower specifies a charging temperature range of 0°C to 55°C and a discharge temperature range of -30°C to 60°C, with humidity resistance up to 95% RH.
Key Features
- 32.15kWh battery energy
- 51.2V nominal voltage
- 628Ah battery capacity
- LiFePO₄ battery technology
- 150A standard charge/discharge current
- 300A maximum charge/discharge current
- 7.68kW charge power
- 15.3kW discharge power
- Touch-screen LCD display
- SOC and LED indicators
- CAN / RS485 communication
- Up to 15 batteries in parallel
- Floor-standing design
- IP20 protection
Ideal Applications
- Large residential solar systems
- Commercial buildings
- Factories and industrial facilities
- High-load hybrid solar systems
- Large backup power systems
- Scalable commercial energy storage
Buy the MaxPower MP 32000-PRO 32.15kWh Lithium Battery from Satluj Solar for genuine solar energy-storage equipment and professional system guidance.
Additional specifications
| Brand |
Maxpower |
| Product Type |
Lithium Battery |
| Capacity |
628Ah |
| System Class |
48V |
