Specifications
| Specification |
Details |
| Model |
S6-EH1P6K-L-PRO |
| Rated AC Output Power |
6 kW |
| Inverter Type |
Hybrid On-Grid / Off-Grid |
| Grid Type |
Single Phase |
| Battery Voltage Range |
40–60 V |
| Battery Type |
Lithium-ion & Lead-acid |
| Maximum Charge / Discharge Current |
Up to 135 A |
| Maximum Charge / Discharge Power |
6 kW |
| Number of MPPTs |
2 |
| Strings per MPPT |
1 |
| Maximum DC Input Power |
9.6 kW |
| Maximum PV Input Voltage |
600 V |
| Maximum PV Input Current |
16 A / 16 A |
| Output Voltage |
230 V |
| Output Frequency |
50 Hz / 60 Hz |
| Cooling |
Natural Cooling |
| Communication |
CAN / RS485 |
| Protection Rating |
IP66 |
| Weight |
Approx. 24 kg |
| Dimensions (W × H × D) |
406 × 560 × 205 mm |
| Monitoring |
SolisCloud |
| Backup Function |
UPS-level backup switching |
| Applications |
Residential & Small Commercial Solar Systems |

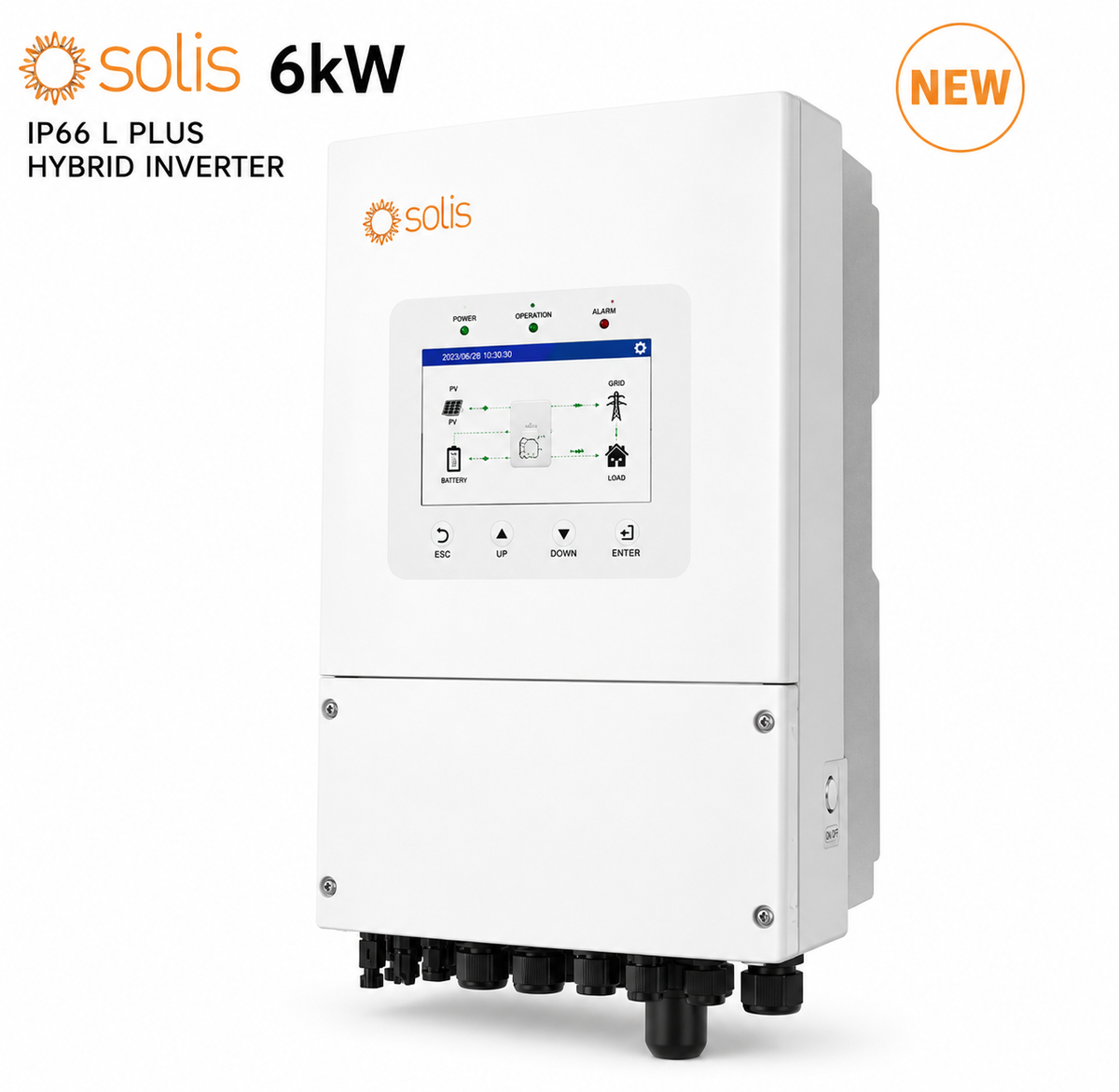

Solis S6-EH1P6K-L-PRO 6kW Hybrid Solar Inverter
The
Solis S6-EH1P6K-L-PRO 6kW Hybrid Solar Inverter is a powerful single-phase energy storage solution designed for homes and small commercial applications. It combines solar generation, battery storage and grid power in one intelligent system, helping you use more solar energy while maintaining reliable backup power.
With
dual MPPT technology, the inverter can efficiently manage solar panels installed in different orientations. Its low-voltage battery design supports a wide range of compatible lithium-ion and lead-acid batteries, making it a flexible choice for new solar installations as well as system upgrades.
The S6-EH1P6K-L-PRO delivers up to
6kW rated output and features an
IP66-rated enclosure for protection against dust and water. It is suitable for residential solar systems and other applications where dependable energy storage and backup performance are required.
With
SolisCloud monitoring, users can monitor system performance and energy production remotely. The inverter also supports generator integration and flexible operating modes for different energy requirements.
Key Features
- 6kW single-phase hybrid solar inverter
- Dual MPPT solar input
- Low-voltage 40–60V battery compatibility
- Compatible with lithium-ion and lead-acid batteries
- Up to 6kW battery charge/discharge power
- IP66 protection rating
- Fast UPS-level backup switching
- Generator connectivity
- SolisCloud remote monitoring
- Suitable for residential and small commercial solar systems
Applications
- Residential solar systems
- Homes requiring battery backup
- Solar systems with lithium batteries
- Solar systems with lead-acid batteries
- Small commercial applications
- On-grid and backup power applications
Buy the Solis 6kW Hybrid Solar Inverter from Satluj Solar Bahawalnagar and get genuine solar equipment with professional guidance for your solar system.
Additional specifications
| Brand |
Solis |
| Rated Power |
6kW |
| Product Type |
Hybrid Inverter |
| Phase |
Single Phase |
