Product Description

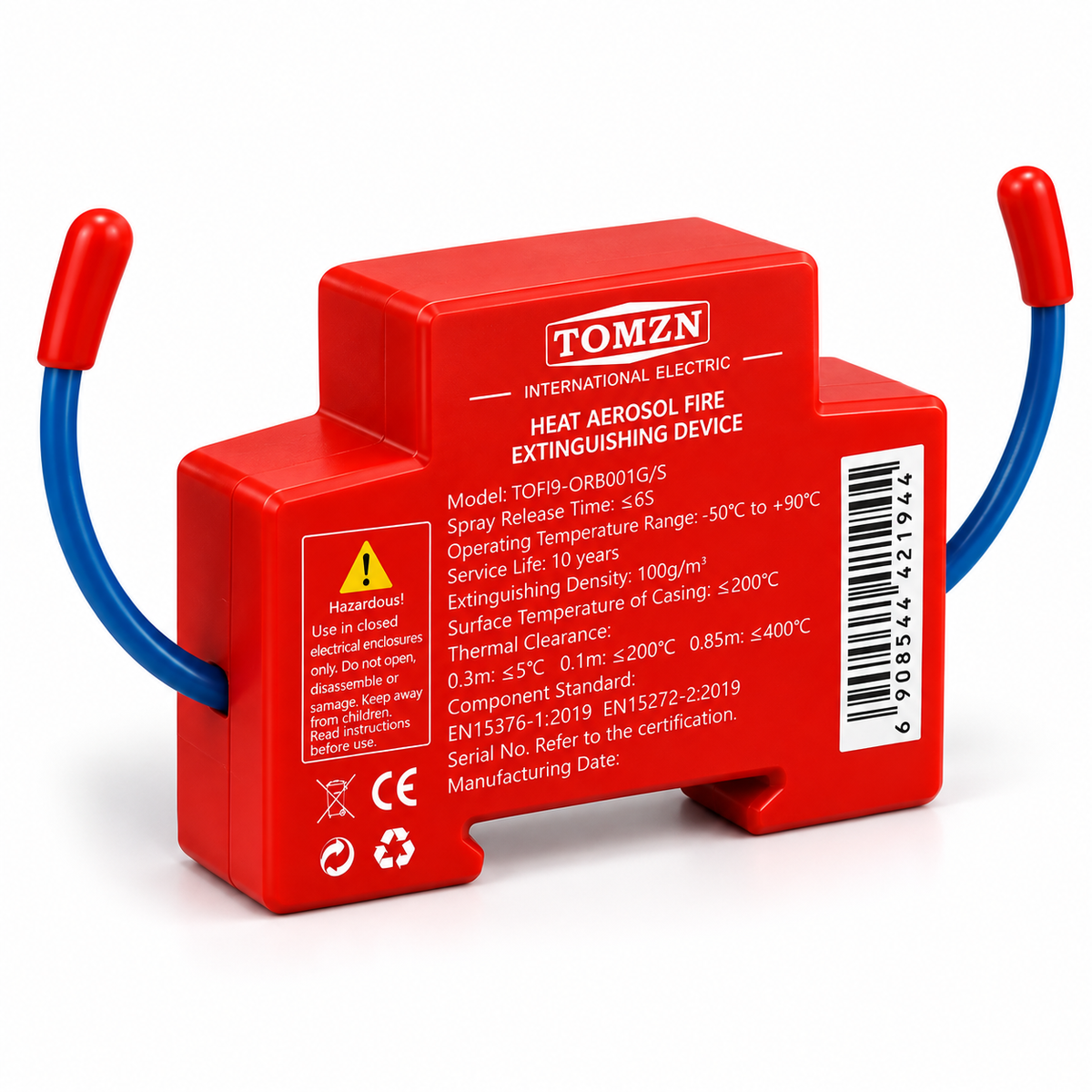

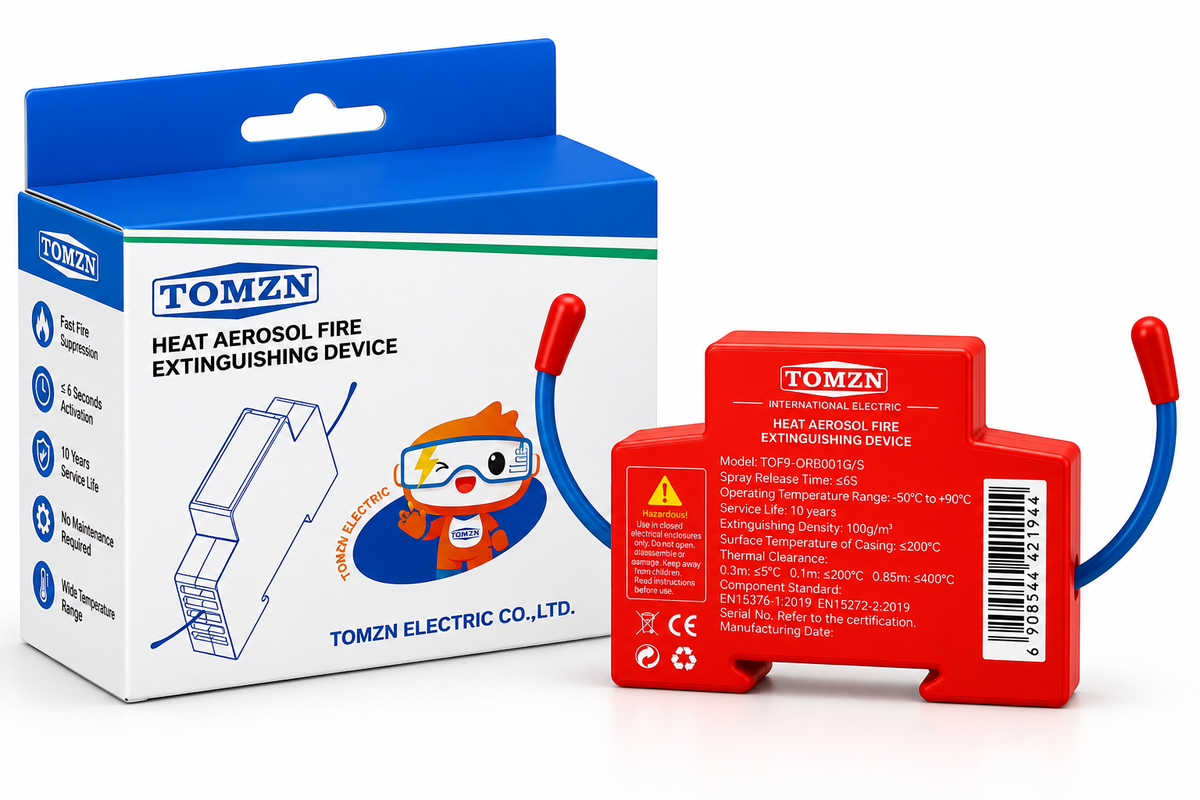

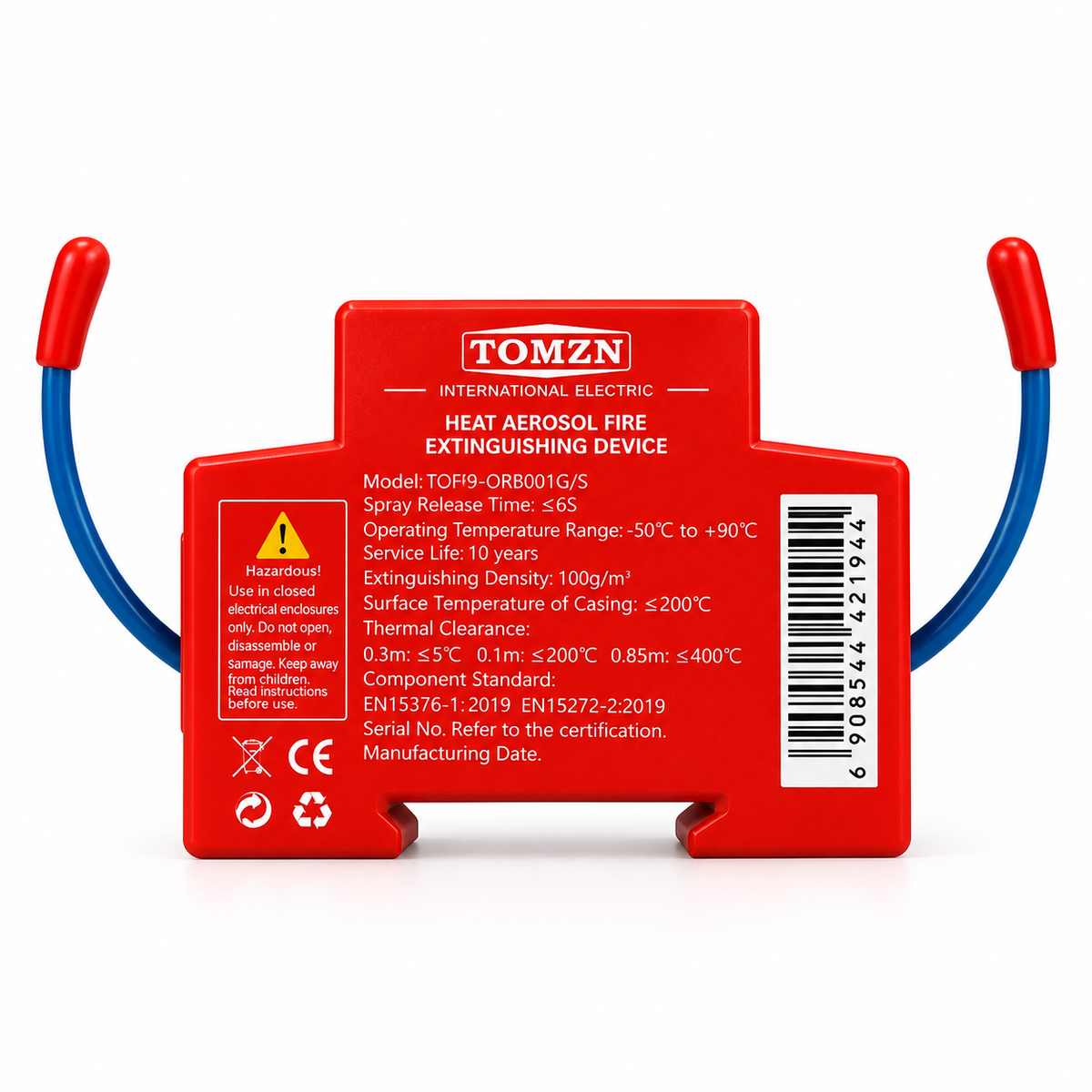

TOMZN Automatic Heat Aerosol Fire Extinguishing Device
Protect electrical enclosures from fire with the TOMZN Heat Aerosol Fire Extinguishing Device. Designed specifically for closed electrical enclosures, this compact fire-suppression device activates when exposed to fire/heat and releases a fire-suppressing aerosol.

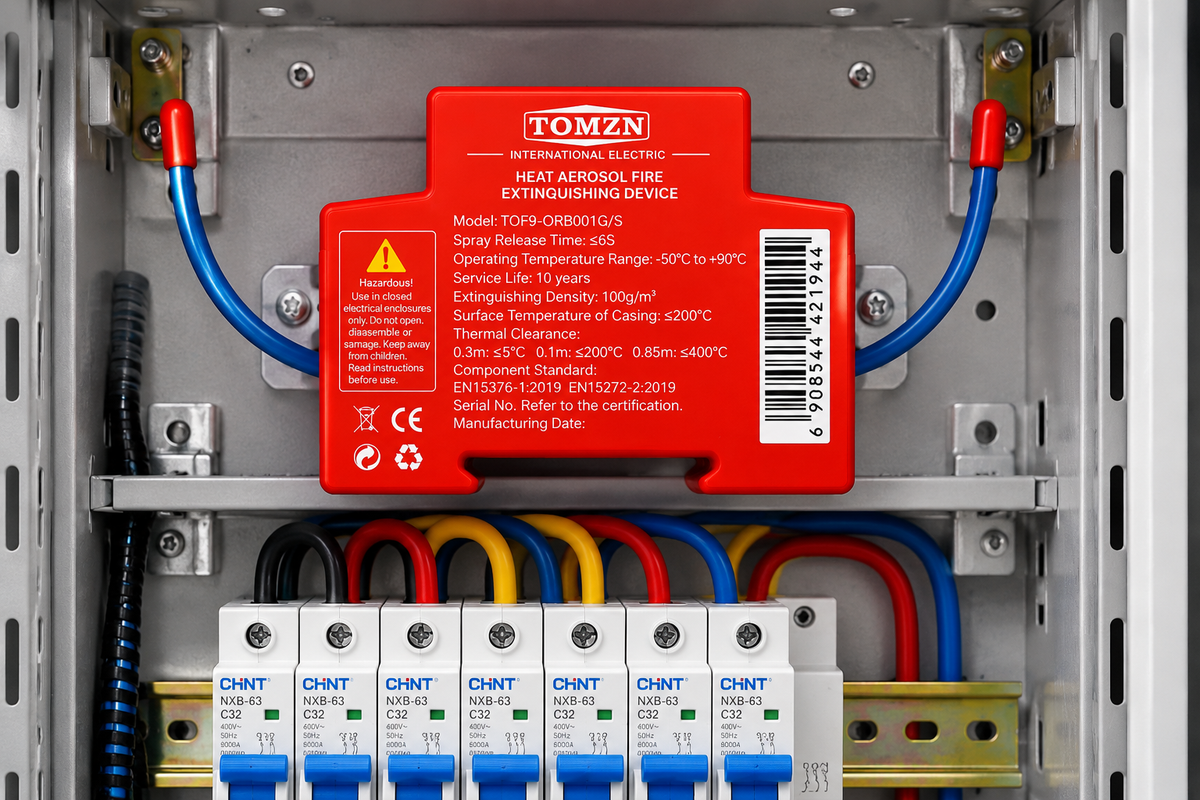

Its compact design makes it suitable for installation inside electrical distribution boxes, control cabinets and similar enclosed electrical applications where conventional handheld extinguishers cannot provide automatic protection.
Key Features
- 🔥 Automatic Fire Suppression – Designed to activate automatically when exposed to a fire condition.
- ⚡ For Electrical Enclosures – Intended for closed electrical cabinets and similar enclosed spaces.
- ⏱️ Fast Aerosol Release – Label states a spray release time of ≤6 seconds.
- 🛡️ 10-Year Service Life – Long service period stated on the product.
- 🌡️ Wide Operating Temperature – Rated from -50°C to +90°C.
- 💨 100 g/m³ Extinguishing Density
- 📦 Compact Design – Suitable for installation where space inside an electrical enclosure is limited.

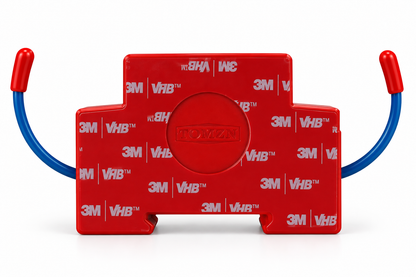

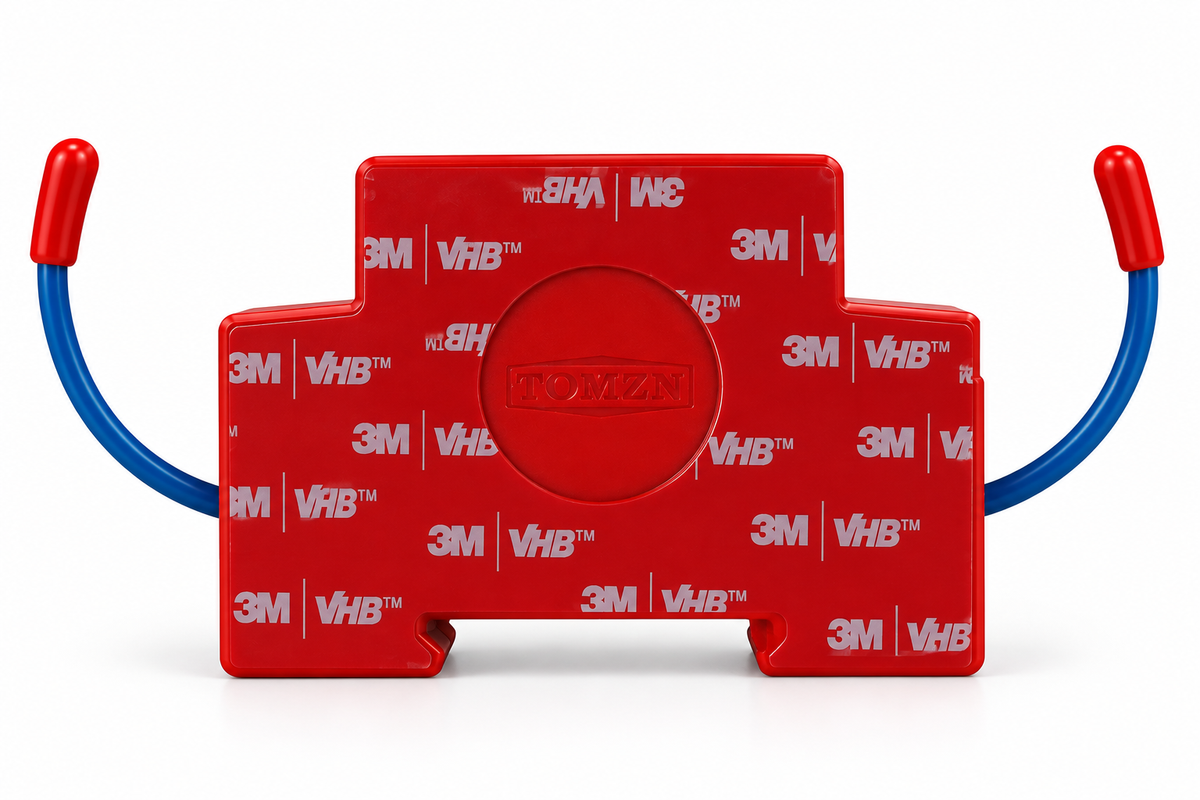

- 🔧 Adhesive Mounting Surface – Rear side uses adhesive mounting for convenient installation.
- 🚫 No Manual Operation Required During a Fire – Intended as an automatic suppression solution inside the protected enclosure.

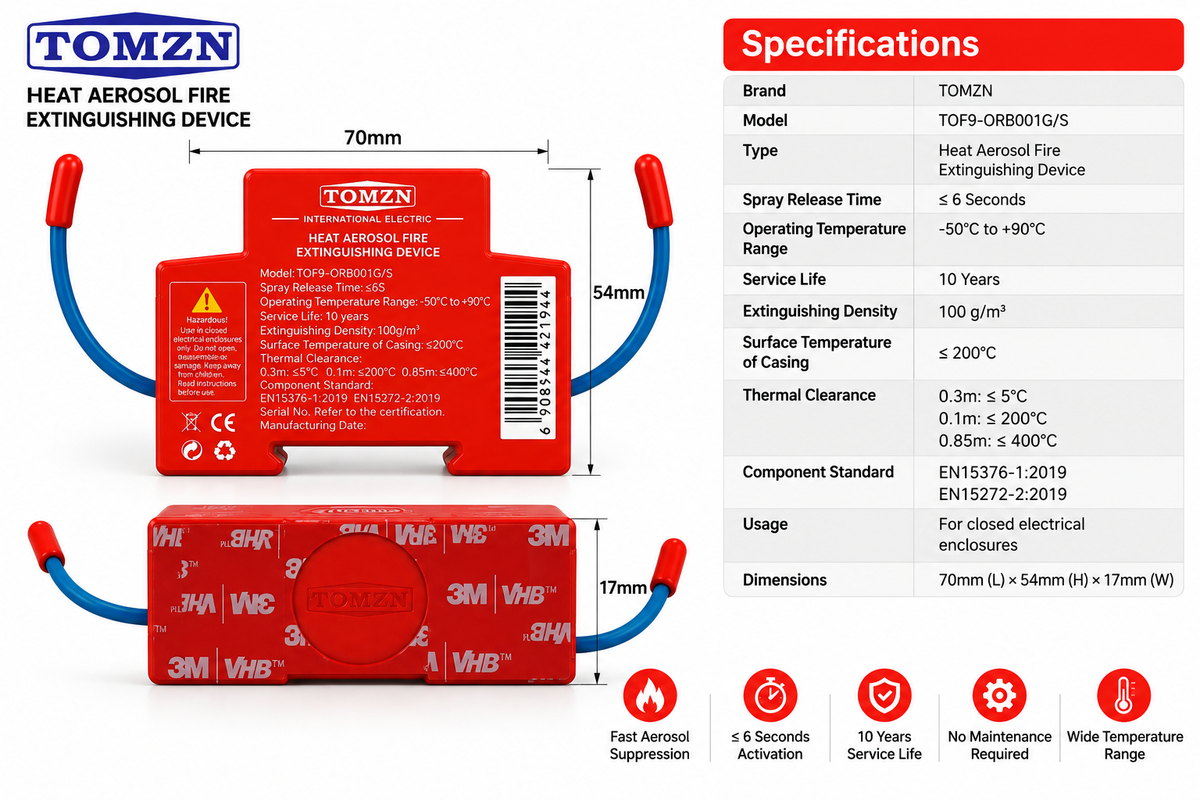

Specifications
| Specification | Details |
|---|---|
| Brand | TOMZN |
| Product | Heat Aerosol Fire Extinguishing Device |
| Model | TOF9-ORB001G/S |
| Spray Release Time | ≤6 seconds |
| Operating Temperature | -50°C to +90°C |
| Service Life | 10 years |
| Extinguishing Density | 100 g/m³ |
| Surface Temperature of Casing | ≤200°C |
| Component Standard | EN15376-1:2019 / EN15272-2:2019 |
| Application | Closed electrical enclosures |
| Approx. Body Dimensions | 70 × 54 × 17 mm |
