Product Description
Smart Electrical Protection with Complete WiFi Control

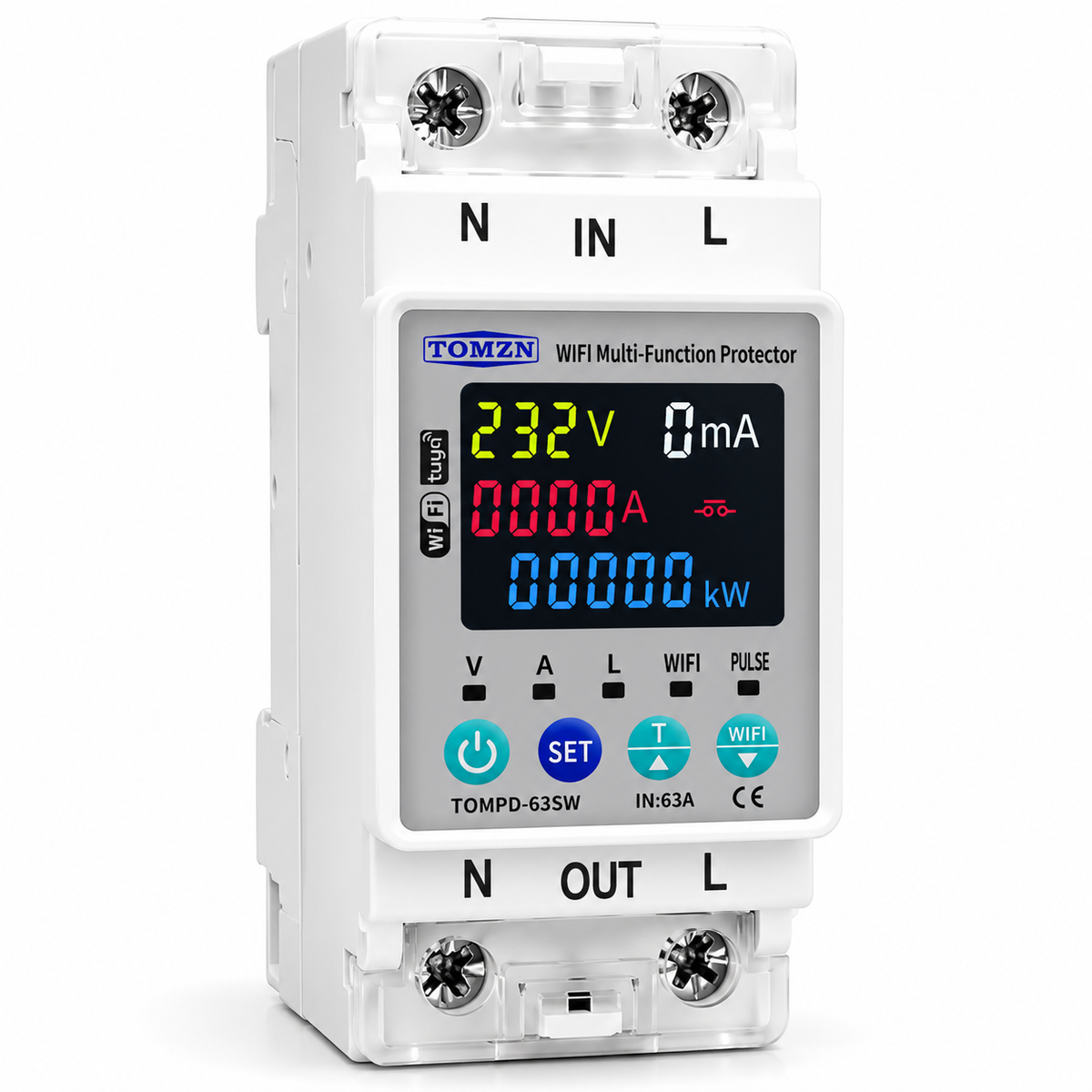

Protect and monitor your electrical system with the TOMZN TOMPD-63SW 63A Smart WiFi Protector. This compact 10-in-1 smart protection device combines voltage, current and leakage protection with real-time electricity monitoring and remote control through the Tuya / Smart Life app.

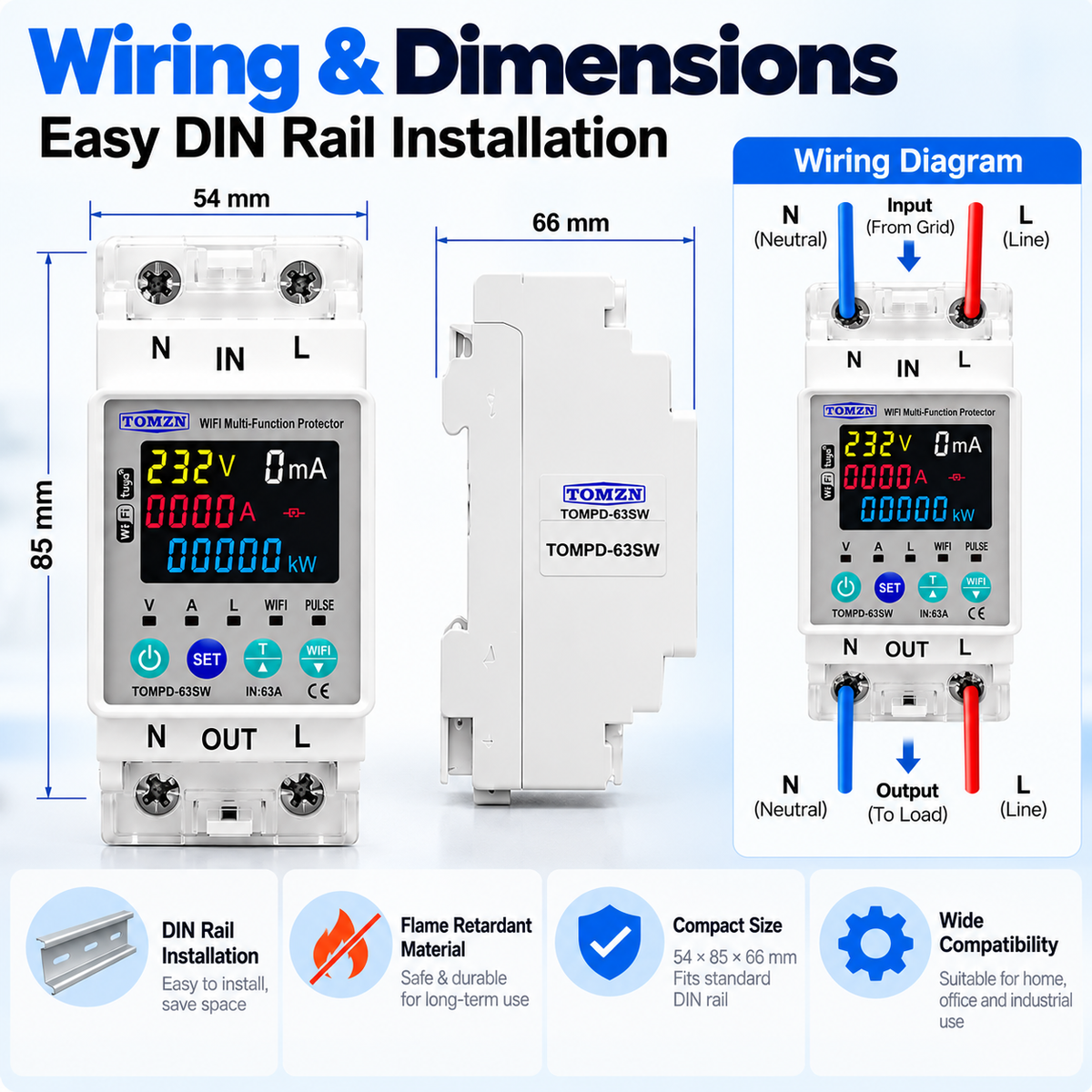

Designed for DIN-rail installation, it allows you to monitor important electrical parameters from your smartphone and set adjustable protection limits according to your requirements.
Key Features
- 📱 Remote ON/OFF Control – Control the connected circuit remotely through your smartphone.
- ⚡ Real-Time Monitoring – Monitor voltage, current, leakage current and total energy consumption.
- 🛡️ Over-Voltage Protection – Adjustable upper-voltage protection.
- 🔻 Under-Voltage Protection – Automatically protects against excessively low voltage.
- 🔥 Over-Current Protection – Adjustable from 1A up to 63A.
- 💧 Earth Leakage Protection – Detects leakage current and disconnects the circuit when the configured limit is exceeded.
- 🌡️ Temperature Protection – Additional protection against abnormal temperature conditions.
- ⏰ Timer & Scheduling – Set automatic ON/OFF schedules through the app.
- 📊 Prepaid Meter Function – Helps manage electricity consumption and energy limits.
- 📶 2.4GHz WiFi – Connect to the device using the Tuya / Smart Life ecosystem.
Ideal For
Suitable for smart electrical monitoring and protection in homes, shops, offices, rental properties and other compatible single-phase electrical installations.
Because this device is installed inside an electrical distribution system, installation should be carried out by a qualified electrician.
Specifications
| Specification | Details |
|---|---|
| Brand | TOMZN |
| Model | TOMPD-63SW |
| Product Type | Smart WiFi Multi-Function Protector |
| Maximum Current | 63A |
| Over-Current Protection | 1A–63A Adjustable |
| Under-Voltage Protection | 85V–220V Adjustable |
| Default Under-Voltage Setting | 170V |
| Over-Voltage Protection | 110V–300V Adjustable |
| Default Over-Voltage Setting | 275V |
| Earth Leakage Protection | 10–300mA |
| Leakage Action Time | Approx. 500ms |
| Energy Monitoring | Yes |
| Voltage Monitoring | Yes |
| Current Monitoring | Yes |
| Leakage Current Monitoring | Yes |
| Temperature Protection | Yes |
| Remote ON/OFF | Yes |
| Timer / Scheduling | Yes |
| Prepaid Meter Function | Yes |
| WiFi | 2.4GHz |
| App | Smart Life / Tuya |
| Power Consumption | Less than 2W |
| Installation | DIN Rail Mount |
| Color | White |
